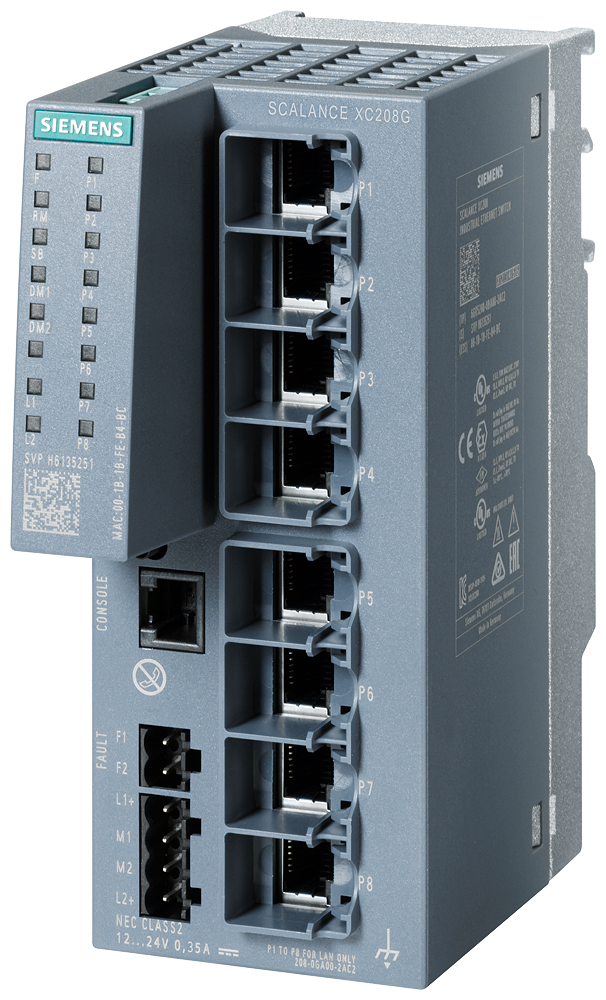

SCALANCE XC208G manageable Layer 2 IE switch; IEC 62443-4-2 certified
SKU: 6GK5208-0GA00-2AC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SCALANCE XC208G Layer 2 IE switch is IEC 62443-4-2 certified and features 8x 10/100/1000 Mbps RJ45 ports, 1x console port, diagnostics LED, redundant power supply, and a temperature range of -40 °C to +70 °C.
Assembly: DIN rail/S7 mounting rail/wall redundancy functions; office features (RSTP, VLAN); PROFINET IO device; Ethernet/IP-compliant; C-PLUG slot; IEEE 1588v2 PTP.
product type designation:
product brand name: SCALANCE.
product type designation: XC208G.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 8; RJ45.
number of 10/100/1000 Mbit/s RJ45 ports:
with securing collar: 8.
interfaces / other:
number of electrical connections:
for operator console: 1.
for signaling contact: 1.
for power supply: 1.
type of electrical connection:
for operator console: RJ11.
for signaling contact: 2-pole terminal block.
for power supply: 4-pole terminal block.
design of the removable storage:
C-PLUG: Yes.
operating voltage / of the signaling contacts:
at DC / rated value: 24 V.
operational current / of the signaling contacts:
at DC / maximum: 0.1 A.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
product component / connection for redundant voltage supply: Yes.
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 4.3 W.
consumed current / 1 / at rated supply voltage / maximum: 0.26 A.
supply voltage / 1 / rated value: 9.6 ... 31.2 V.
consumed current / 1 / maximum: 0.36 A.
type of electrical connection / 1 / for power supply: 4-pole terminal block.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: 2.5 A/ 125 V.
ambient conditions:
ambient temperature:
during operation: -40 ... +70 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 60 mm.
height: 147 mm.
depth: 125 mm.
net weight: 0.52 kg.
material / of the enclosure: Polycarbonate (PC-GF10) / pressure die cast aluminium.
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: Yes.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: Yes.
