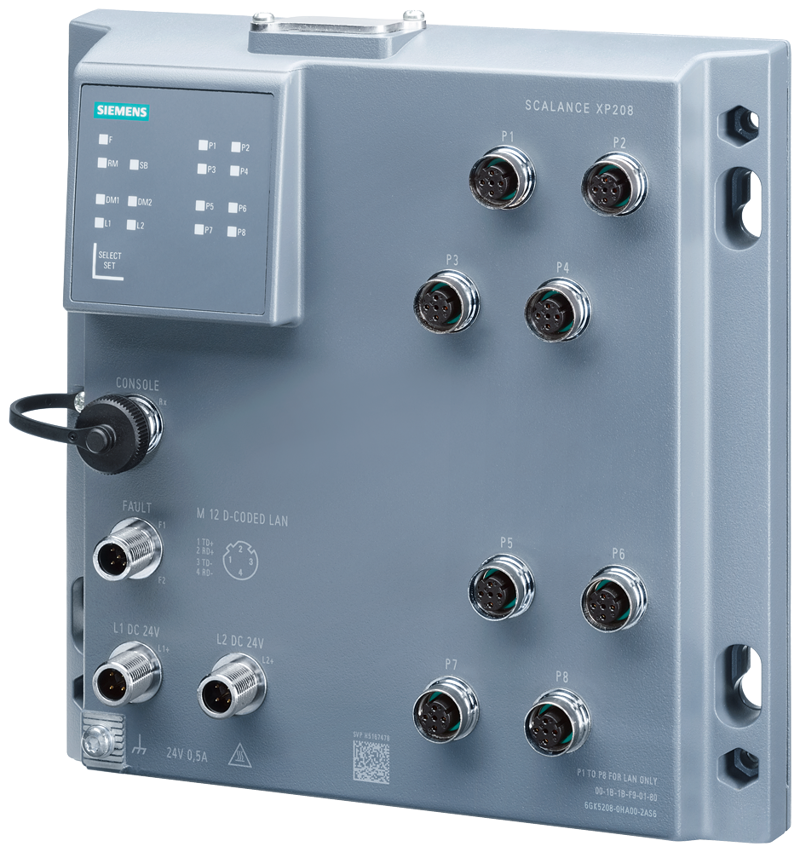

SCALANCE XP208, managed IE switch, 8x 10/100 Mbit/s M12 ports, IP65, LED diag...
SKU: 6GK5208-0HA00-2AS6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XP208 is a managed IE switch with 8x 10/100 Mbit/s M12 ports, IP65, LED diagnostics, an error signalling contact, a redundant power supply, an IEC 62443-4-2 certified PROFINET IO device, network management, the ability to operate in a redundant ring, dust caps, and an electronic manual on CD-ROM. C-plug is optional.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s.
Number of electrical connections for network components or terminal equipment: 8; M12.
Number of 10/100 Mbit/s M12-ports (D-coded): 8.
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
For power supply: 2.
Type of electrical connection:
For operator console: 5 pin M12 socket (A coded).
For signalling contact: 5-pin M12 connector (B-coded).
For power supply: 4-pin M12 plug (A-coded).
Design of the removable storage: C-PLUG.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP65.
Design: compact.
Width: 200 mm.
Height: 200 mm.
Depth: 49 mm.
Material of the enclosure: Aluminium.
Fastening method: ET200pro module carrier, wall mounting.
