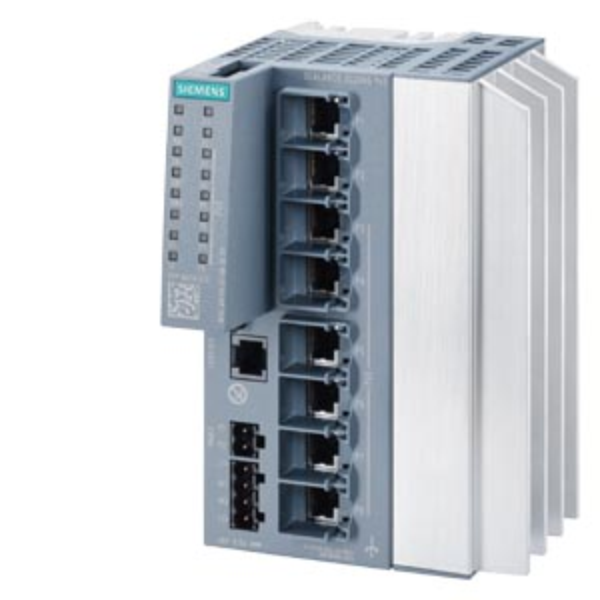

SCALANCE XC208G PoE Manageable Layer 2 IE PoE Switch
SKU: 6GK5208-0RA00-2AC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SCALANCE XC208G PoE Manageable Layer 2 IE PoE Switch is IEC 62443-4-2 certified, with 6x 10/100/1000 Mbps RJ45 PoE ports that comply with IEEE802.3at and 2 ports that comply with IEEE802.3bt.
It also supports 24 V DC PoE. Infeed: 120 W PoE power can be distributed across all PoE ports. Features include a single console port, diagnostic LED, redundant power supply, temperature range of -40°C to +60°C, mounting on DIN rail/S7 rail/wall, redundancy functions, office features (RSTP, VLAN, etc.), PROFINET device, Ethernet/IP compliance, C-PLUG slot, and IEEE 1588v2 PTP.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand Name: SCALANCE.
Product Type Designation: XC208G PoE.
Transfer Rate: 10 Mbit/s, 100Mbit/s, 1000Mbit/s.
Interfaces / for Communication / Integrated:
Number of Electrical Connections for Network Components or Terminal Equipment: 8; RJ45.
Number of 10/100/1000 Mbit/s RJ45 ports:
With Securing collar: 2; 4 PoE ports according to IEEE 802.3 at (30W), 2 PoE ports according to IEEE 802.3bt (60W).
With securing collor / with PoE: 6.
Number of Electrical Connections:
For Operator console: 1.
For signalling contact: 1.
Type of electrical connection:
For operator console: RJ11.
For signalling contact: 2-Pole terminal block.
For power supply: 4-Pole terminal block.
Design of removable storage: C-Plug.
Operating Voltage / of the signalling contact at DC /rated value: 24V.
Operational current / of the signalling contacts at DC / Maximum: 0.1A.
Supply Voltage, Current Consumption, Power Loss:
Product component / connection for redundant voltage supply: Yes.
Supplied active power / of PSE/ with PoE: 144W.
Type of voltage / 1 / of the supply voltage: DC.
Supply voltage / 1 / rated value: 24V.
Consumed current / 1 / at rated supply voltage / maximum: 6A.
Supply voltage / 1 / rated value: 19.2 – 31.2 V.
Consumed current / 1 / maximum: 7.5A.
Fuse protection type / 1 / at input for supply voltage: 15A / 125V.
Ambient temperature:
During operation: -40 - +60 °C.
During storage: -40 - +85 °C.
During transport: -40 - +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95%.
Protection class IP: IP20.
Design, dimensions and weights:
Design: Compact.
Width: 100 mm.
Height: 147 mm.
Depth: 125 mm.
Material / of the enclosure: Polycarbonate (PC-GF10) / Pressure die cast aluminium.
Fastening method:
35 mm DIN-rail mounting.
Wall mounting.
S7-300 Rail mounting.
S7-1500 Rail mounting.
Product functions / management, configuration, engineering:
Product function:
CLI.
Web-Based Management.
MIB Support.
TRAPs via email.
Configuration with STEP7.
RMON.
Port mirroring.
Multiport mirroring.
CoS.
PROFINET IO diagnosis.
Switch-managed.
