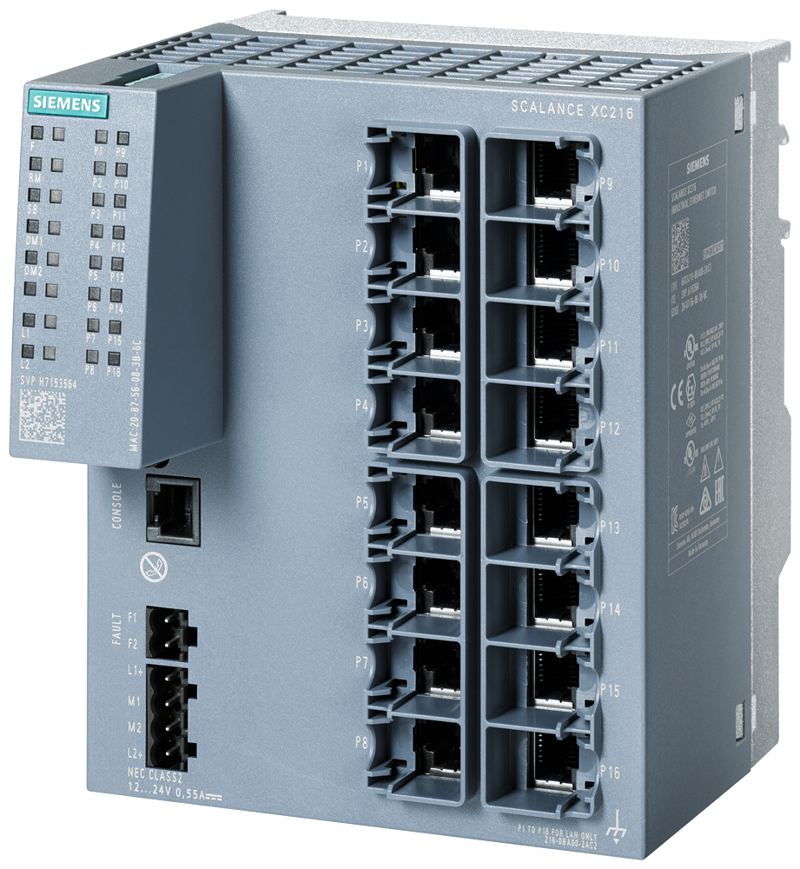

SCALANCE XC216 manageable Layer 2 IE switch; IEC 62443-4-2 certified
SKU: 6GK5216-0BA00-2AC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SCALANCE XC216 Layer 2 IE switch is IEC 62443-4-2 certified and features 16 10/100 Mbit/s RJ45 ports, 1 console port, diagnostics LED, redundant power supply, and a temperature range of -40 °C to +70 °C.
Assembly options include DIN rail/S7 mounting, office redundancy functions (e.g., RSTP, VLAN), PROFINET IO, Ethernet/IP compatibility, and a C-plug slot.
product type designation:
product brand name: SCALANCE.
product type designation: XC216.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 16; RJ45.
number of 10/100/1000 Mbit/s RJ45 ports:
with securing collar: 16.
interfaces / other:
number of electrical connections:
for operator console: 1.
for signaling contact: 1.
for power supply: 1.
type of electrical connection:
for operator console: RJ11.
for signaling contact: 2-pole terminal block.
for power supply: 4-pole terminal block.
design of the removable storage:
C-PLUG: Yes.
operating voltage / of the signaling contacts:
at DC / rated value: 24 V.
operational current / of the signaling contacts:
at DC / maximum: 0.1 A.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
product component / connection for redundant voltage supply: Yes.
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 6.6 W.
consumed current / 1 / at rated supply voltage / maximum: 0.275 A.
supply voltage / 1 / rated value: 9.6 ... 31.2 V.
consumed current / 1 / maximum: 0.55 A.
type of electrical connection / 1 / for power supply: 4-pole terminal block.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: 2.5 A/ 125 V.
ambient conditions:
ambient temperature:
during operation: -40 ... +70 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 120 mm.
height: 147 mm.
depth: 125 mm.
net weight: 0.8 kg.
material / of the enclosure: Polycarbonate (PC-GF10) / pressure die cast aluminium.
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: Yes.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: Yes.
