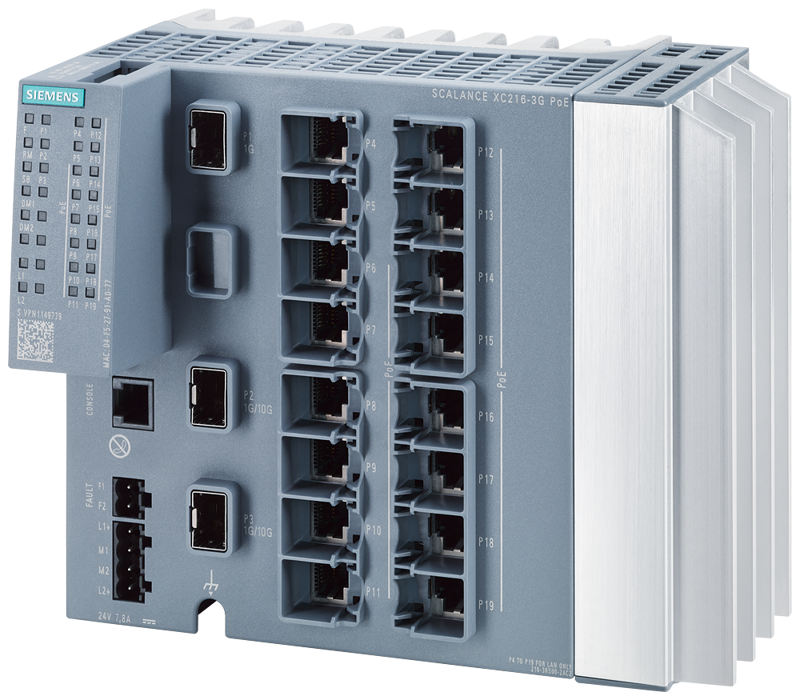

SCALANCE XC216-3G PoE manageb. Layer 2 IE PoE Switch; 14x 10, 100/1000 Mbit/s...
SKU: 6GK5216-3RS00-2AC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XC216-3G PoE manageable Layer 2 IE PoE Switch; 14x 10, 100/1000 Mbps; RJ45 PoE Ports according to IEEE802.3at; 2 of them according to IEEE802.3bt.
IEC 62443-4-2 approved 2x 10/100/1,000 Mbps RJ45; 2x 1,000, 10,000 Mbps SFP+; 1x 1,000 Mbps SFP; and PoE capability for 24 V DC infeed.
The 120 W PoE power can be spread among all PoE ports.
1x console port; diagnostics LED; redundant power supply; temperature range -40°C to +60°C; mounting on DIN rail/S7 mounting rail/wall; redundancy functions; office features (RSTP, VLAN, etc.); PROFINET device; Ethernet.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s.
Number of electrical connections for network components or terminal equipment: 16; RJ45.
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
Type of electrical connection:
For operator console: RJ11.
For signalling contact: 2-pole terminal block.
For power supply: 4-pole terminal block.
Design of the removable storage: C-PLUG.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Supplied active power / of PSE / with PoE maximum: 150 W.
Ambient temperature:
During operation: -40 ... +60 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: compact.
Width: 180 mm.
Height: 147 mm.
Depth: 125 mm.
Material / of the enclosure: Polycarbonate (PC-GF10) / pressure die cast aluminium.
Fastening method:
35 mm top hat DIN rail mounting.
S7-300 rail mounting.
S7-1500 rail mounting.
