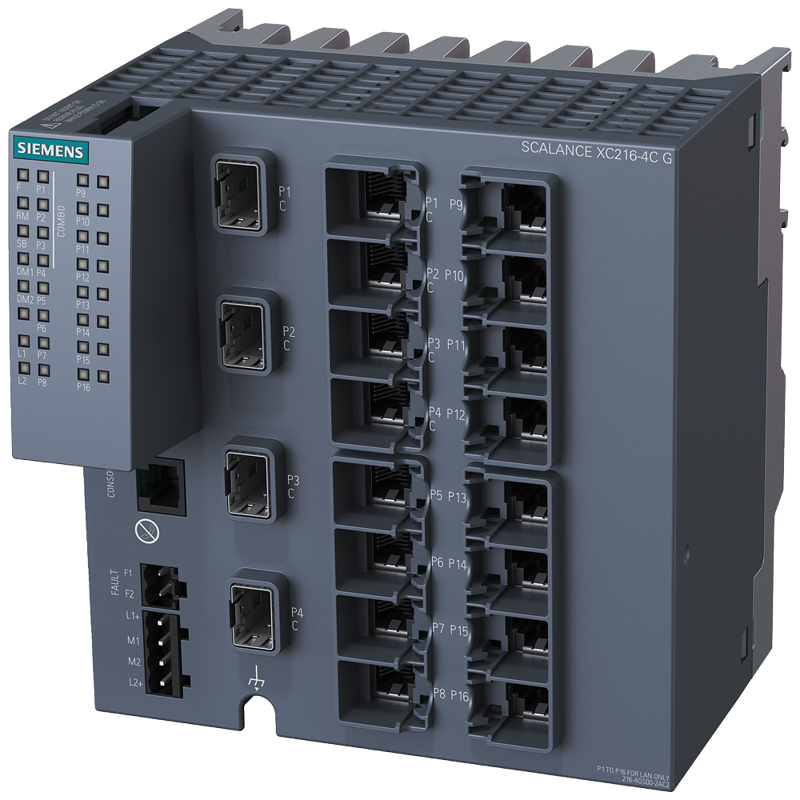

SCALANCE XC216-4C G manageable Layer 2 IE switch; IEC 62443-4-2 certified
SKU: 6GK5216-4GS00-2AC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Scalance XC216-4C G Layer 2 IE switch is IEC 62443-4-2 approved and supports full gigabit speeds. 12x 10/100/1000 Mbps RJ45 ports; 4x 1000 Mbps combo ports (either 1000 Mbps/SFPs or 10/100/1000 Mbps RJ45 ports can be used); 1x console port; diagnostics LED; redundant power supply; temperature range -40°C to +70°C.
Assembly: DIN rail/S7 mounting rail/wall; redundancy functions; office features (RSTP, VLAN); PROFINET IO device; Ethernet/IP-compliant; C-PLUG slot; IEEE 1588v2 PTP.
product type designation:
product brand name: SCALANCE.
product type designation: XC216-4C G.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s.
interfaces / for communication / integrated:
number of electrical connections:
for network components or terminal equipment: 16; RJ45.
number of 10/100/1000 Mbit/s RJ45 ports: 16.
number of combo ports / with RJ45 interface for optical plug-in transceiver: 4; 1000 MBit/s SFPs.
interfaces / for communication / plug-in:
number of electrical connections:
for SFP: 4.
interfaces / other:
number of electrical connections:
for operator console: 1.
for signaling contact: 1.
for power supply: 1.
type of electrical connection:
for operator console: RJ11.
for signaling contact: 2-pole terminal block.
for power supply: 3-pole terminal block.
design of the removable storage:
C-PLUG: Yes.
operating voltage / of the signaling contacts:
at DC / rated value: 24 V.
Buy currently uses Select Automation shop pricing and checkout.
supply voltage, current consumption, power loss:
product component / connection for redundant voltage supply: Yes.
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 13.2 W.
supply voltage / 1 / rated value: 9.6 ... 31.2 V.
consumed current / 1 / maximum: 0.55 A.
type of electrical connection / 1 / for power supply: 3-pole terminal block, permanently installed.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: 3.15 A/ 125 V.
ambient conditions:
ambient temperature:
during operation: -40 ... +70 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
relative humidity:
at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 140 mm.
height: 150 mm.
depth: 125 mm.
net weight: 1.2 kg.
material / of the enclosure: Polycarbonate (PC-GF10) / pressure die cast aluminium.
fastening method:
35 mm top hat DIN rail mounting: Yes.
wall mounting: No.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: Yes.
