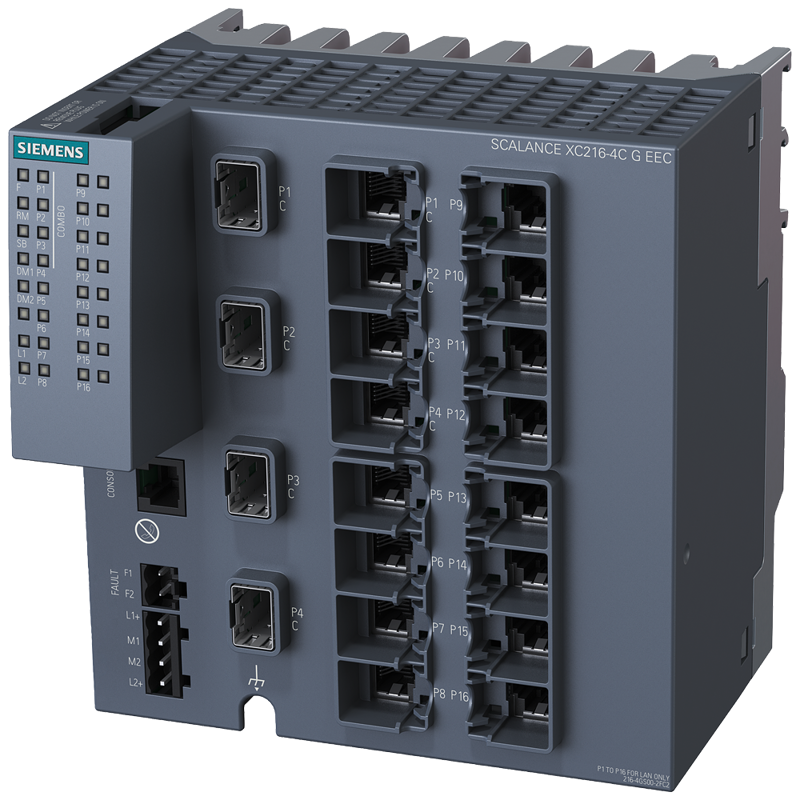

SCALANCE XC216-4C G EEC managed Layer 2 IE switch; IEC 62443-4-2 certified; F...
SKU: 6GK5216-4GS00-2FC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XC216-4C G EEC managed Layer 2 IE switch; IEC 62443-4-2 certified; Full Gigabit; 12x 10/100/1000 Mbps RJ45 ports; 4x 1000 Mbps combo ports (1000 Mbps/SFPs or 10/100/1000 Mbps RJ45 ports can be used); 1x console port; diagnostics LED; redundant power supply; with painted printed circuit boards.
NAMUR NE21-compliant; temperature range: -40°C to +70°C.
Mounting options include DIN rail/S7 rail/wall, redundancy functions, office features such as RSTP and VLAN, PROFINET IO device, and Ethernet/IP compliance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s.
Number of electrical connections for network components or terminal equipment: 16; RJ45.
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For operator console: RJ11.
For signalling contact: 2-pole terminal block.
For power supply: 3-pole terminal block.
Design of the removable storage: C-PLUG.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: compact.
Width: 140 mm.
Height: 150 mm.
Depth: 125 mm.
Material / of the enclosure: Polycarbonate (PC-GF10) / pressure die cast aluminium.
Fastening method:
35 mm top hat DIN rail mounting.
S7-300 rail mounting.
S7-1500 rail mounting.
