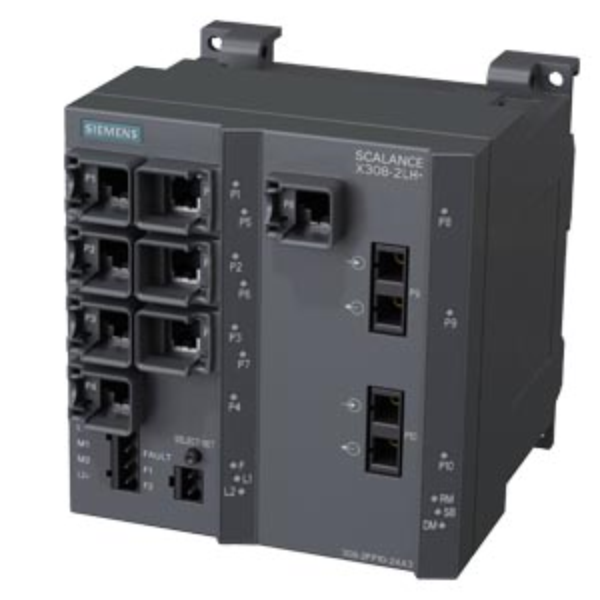

SCALANCE X308-2LH+ managed plus IE switch
SKU: 6GK5308-2FP10-2AA3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SCALANCE X308-2LH+ managed plus IE switch includes 2x 1000 Mbit/s SM SC, 1x 10/100/1000 Mbit/s, 7x 10/100 Mbit/s RJ45 ports, LED diagnostics, error signalling contact with select/set pushbutton, PROFINET IO device, network management, integrated redundancy manager, office features (RSTP, VLAN, IGMP), and C-PLUG.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand Name: SCALANCE.
Product Type Designation: X308-2LH+.
Transfer Rate: 10 Mbit/s, 100Mbit/s, 1000Mbit/s.
Interfaces / for Communication / Integrated:
Number of Electrical Connections for Network Components or Terminal Equipment: 8.
Number of 10/100 Mbit/s RJ45 ports with Securing collar: 7.
Number of 10/100/1000 Mbit/s RJ45 ports with securing collar: 1.
Number of 1000 Mbit/s SC ports for single mode (LH+):2.
Transmission method / of the optical interface: 1000BaseLXLH+.
Number of Electrical Connections:
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For signalling contact: 2-Pole terminal block.
For power supply: 4-Pole terminal block.
Design of removable storage: C-Plug.
Operating Voltage / of the signalling contact at DC /rated value: 24V.
Operational current / of the signalling contacts at DC / Maximum: 0.1A.
Supply Voltage, Current Consumption, Power Loss:
Product component / connection for redundant voltage supply: Yes.
Type of voltage / 1 / of the supply voltage: DC.
Supply voltage / 1 / rated value: 24V.
Power loss [W] / 1 / Rated value: 9.6W.
Supply voltage / 1 / rated value: 18 – 32 V.
Consumed current / 1 / maximum: 0.4A.
Type of electrical connection / 1 / For power supply: 4-Pole terminal block.
Product component / 1 / fusing at power supply input: yes.
Fuse protection type / 1 / at input for supply voltage: F 3A / 32V.
Ambient temperature:
During operation: -40 - +60 °C.
During storage: -40 - +70 °C.
During transport: -40 - +70 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95%.
Protection class IP: IP30.
Design, dimensions and weights:
Design: Compact.
Width: 120 mm.
Height: 125 mm.
Depth: 123 mm.
Fastening method:
35 mm DIN-rail mounting.
Wall mounting.
S7-300 Rail mounting.
Product functions / management, configuration, engineering:
Product function:
CLI.
Web-Based Management.
MIB Support.
TRAPs via email.
Configuration with STEP7.
RMON.
Port mirroring.
Multiport mirroring.
CoS.
PROFINET IO diagnosis.
Switch-managed.
