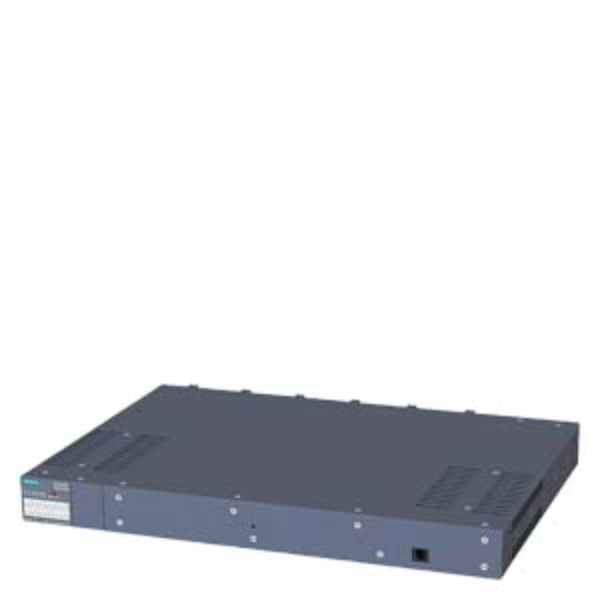

SCALANCE XR324-12M; managed IE switch, 19" rack; 12x 100/1000 Mbit/s 2-port media modules

Specifications: Product Brand Name: SCALANCE. Product Type Designation: XR324-12M. Transfer Rate: 10 Mbit/s, 100Mbit/s, 1000Mbit/s. Interfaces / for Communication / Integrated: Number of 100 Mbit/s ST (BFOC) ports for multimode: 24. Number of 100 Mbit/s SC ports for multimode: 24. Number of Electrical Connections: For operator console: 1. For signalling contact: 1. For media module: 12. For power supply: 1. Type of electrical connection: For operator console: RJ11. For signalling contact: 2-Pole terminal block. For power supply: 2-Pole terminal block. Design of removable storage: C-Plug. Operating Voltage / of the signalling contact at DC /rated value: 24V. Operational current / of the signalling contacts at DC / Maximum: 0.1A. Supply Voltage, Current Consumption, Power Loss: Type of voltage / 1 / of the supply voltage: AC. Supply voltage / 1 / rated value: 230V. Power loss [W] / 1 / Rated value: 50W. Supply voltage / 1 / rated value: 85 – 264 V. Consumed current / 1 / maximum: 0.8A. Type of electrical connection / 1 / For power supply: 2-Pole terminal block. Product component / 1 / fusing at power supply input: yes. Fuse protection type / 1 / at input for supply voltage: 3.15A / 250V. Ambient temperature: During operation: -40 - +70 °C. During storage: -40 - +85 °C. During transport: -40 - +85 °C. Relative humidity at 25 °C / without condensation / during operation / maximum: 95%. Protection class IP: IP20. Design, dimensions and weights: Design: 19-inch rack. Number of modular height units / relating to 19-inch cabinet: 1. Width: 483 mm. Height: 44 mm. Depth: 305 mm. Fastening method: 19-inch installation. Product functions / management, configuration, engineering: Product function: CLI. Web-Based Management. MIB Support. TRAPs via email. Configuration with STEP7. RMON. Port mirroring. Multiport mirroring. CoS. PROFINET IO diagnosis. Switch-managed.
