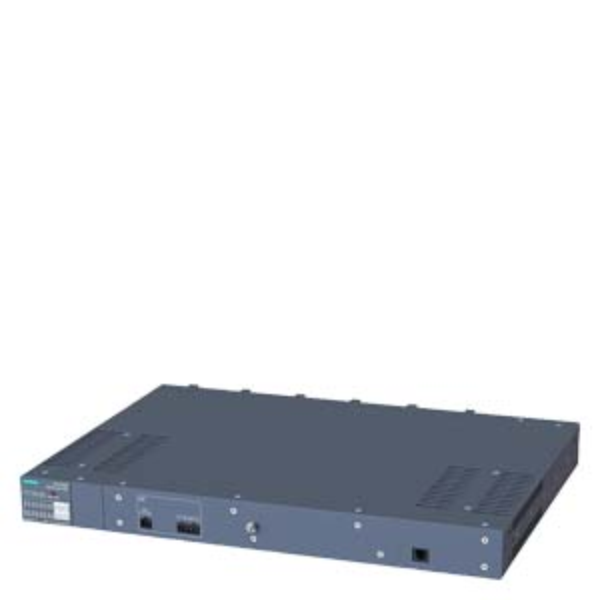

SCALANCE XR324-4M EEC; Managed IE switch, 19" rack; 16x 10/100/1000 Mbit/s for RJ45 ports electrical
SKU: 6GK5324-4GG10-1JR2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XR324-4M EEC, managed IE switch, 19" rack; 16x 10/100/1000 Mbit/s for RJ45 ports electrical; 4x 100/1000 Mbit/s for 2-port media modules, either electrical or optical; LED diagnostics; error signalling contact; select/set pushbutton, PROFINET IO device, network administration, and integrated redundancy manager; Power supply: 1 x 24 V DC; ports in the back.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Brand Name: SCALANCE.
Product Type Designation: XR324-4M EEC.
Transfer Rate: 10 Mbit/s, 100Mbit/s, 1000Mbit/s.
Interfaces / for Communication / Integrated:
Number of electrical connections for network components or terminal equipment: 16; RJ45.
Number of 100 Mbit/s ST (BFOC) ports for multimode: 8.
Number of 100 Mbit/s SC ports for multimode: 8.
Number of Electrical Connections:
For operator console: 1.
For signalling contact: 1.
For media module: 4.
For power supply: 1.
Type of electrical connection:
For operator console: RJ11.
For signalling contact: 2-Pole terminal block.
For power supply: 4-Pole terminal block.
Design of removable storage: C-Plug.
Operating Voltage / of the signalling contact at DC /rated value: 24V.
Operational current / of the signalling contacts at DC / Maximum: 0.1A.
Supply Voltage, Current Consumption, Power Loss:
Type of voltage / 1 / of the supply voltage: DC.
Supply voltage / 1 / rated value: 24V.
Power loss [W] / 1 / Rated value: 40W.
Supply voltage / 1 / rated value: 19.2 – 57.6 V.
Consumed current / 1 / maximum: 1.6A.
Type of electrical connection / 1 / For power supply: 4-Pole terminal block.
Product component / 1 / fusing at power supply input: yes.
Fuse protection type / 1 / at input for supply voltage: T2H / 250V.
Ambient temperature:
During operation: -40 - +70 °C.
During storage: -40 - +85 °C.
During transport: -40 - +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95%.
Protection class IP: IP20.
Design, dimensions and weights:
Design: 19-inch rack.
Number of modular height units / relating to 19-inch cabinet: 1.
Width: 483 mm.
Height: 44 mm.
Depth: 305 mm.
Fastening method: 19-inch installation.
Product functions / management, configuration, engineering:
Product function:
CLI.
Web-Based Management.
MIB Support.
TRAPs via email.
Configuration with STEP7.
RMON.
Port mirroring.
Multiport mirroring.
CoS.
PROFINET IO diagnosis.
Switch-managed.
