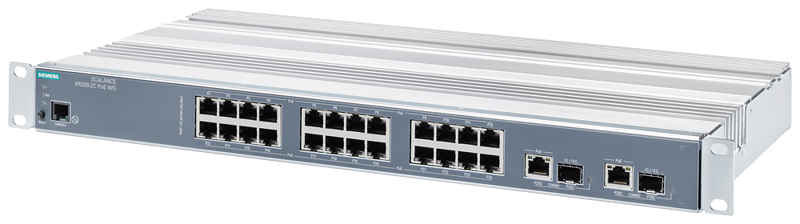

SCALANCE XR326-2C PoE WG; managed IE Switch; 19" rack; 24 x 1GE electrical Po...
SKU: 6GK5326-2QS00-3AR3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XR326-2C PoE WG, managed IE Switch, 19" rack, 24 × 1GE electrical PoE ports.
2 x 10GE electrical combo PoE ports; electrical optical; LED diagnostics; reset button; console port; PROFINET device; network management function; Redundancy Manager; power supply 240 V AC (85-264 V).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, 10 Gbit/s.
Number of electrical connections:
For network components or terminal equipment: 26; RJ45.
For Power-over-Ethernet / for network components or terminal equipment: 26.
Number of 10/100/1000 Mbit/s RJ45 ports, with PoE: 24; PoE Ports according to IEEE802.3at (30 W).
Number of 10/100/1000/10000 Mbit/s RJ45 ports / with PoE: 2.
number of combo ports / with RJ45 interface for optical plug-in transceiver: 2; 1000 Mbit/s, 2500 Mbit/s, 5000 Mbit/s, 10000 Mbit/s RJ45 port incl. PoE function and 1000 Mbit/s, 10000 Mbit/s SFP port.
Number of electrical connections:
For operator console: 1.
For power supply: 2.
Type of electrical connection:
For operator console: RJ11.
For power supply: IEC plug C14 and terminal block for additional PoE power supply (max. 2 additional PSR9230PoE possible, PoE power expandable to 570W).
Supplied active power / of PSE / with PoE: 210 W (max).
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP30.
Design: 19" rack.
Number of modular height units / relating to 19-inch cabinet: 1.
Width: 482.6 mm.
Height: 43.6 mm.
Depth: 227.3 mm.
Material of the enclosure: metal.
Fastening method: 19-inch installation.
