SCALANCE XR326-2C PoE WG; managed IE Switch; 19" rack
SKU: 6GK5326-2QS00-3RR3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

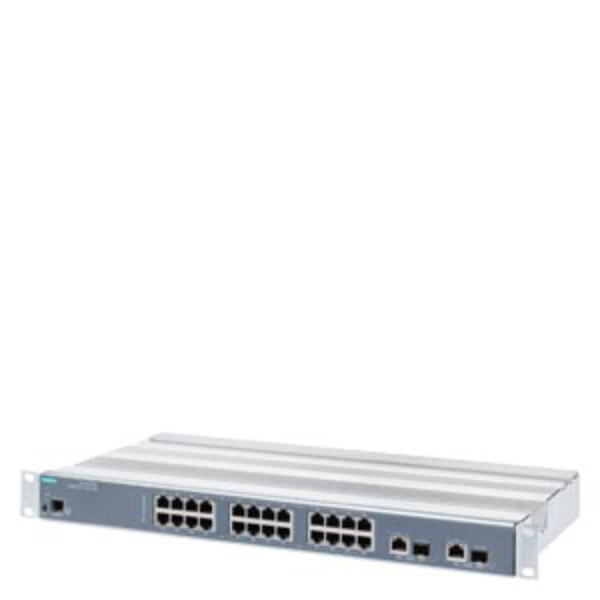

Scalance XR326-2C PoE WG is a managed IE switch in a 19" rack with 24 1GE electrical PoE ports.
The device features 2 x 10GE electrical combo PoE ports, LED diagnostics, a reset button, a console port, a PROFINET device, network administration, and a Redundancy Manager.
It does not have UL/FM approval and requires a 240 V AC power source (85 - 264 V).
Product type designation:
Product brand name: SCALANCE.
Product type designation: XR326-2C PoE WG.
Transfer rate:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 2.5 Gbit/s, 5 Gbit/s, 10 Gbit/s.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Supplied active power / of PSE / with PoE:
Total / maximum: 210 W.
Type of voltage / 1 / of the supply voltage: AC.
Supply voltage / 1 / rated value: 240 V; 100V ... 240V AC.
Supply voltage / 1 / rated value: 85 ... 264 V.
Consumed current / 1 / maximum: 4 A.
Product component / 1 / fusing at power supply input: Yes.
Fuse protection type / 1 / at input for supply voltage: F 4 A / 250 V.
Ambient conditions:
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity:
At 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP30.
Design, dimensions and weights:
Design: 19-inch rack.
Number of modular height units / relating to 19-inch cabinet: 1.
Width: 482.6 mm.
Height: 43.6 mm.
Depth: 227.3 mm.
Net weight: 4.7 kg.
Material / of the enclosure: metal.
Fastening method:
19-inch installation: Yes.
35 mm DIN-rail mounting: No.
Wall mounting: No.
S7-300 rail mounting: No.
S7-1500 rail mounting: No.
