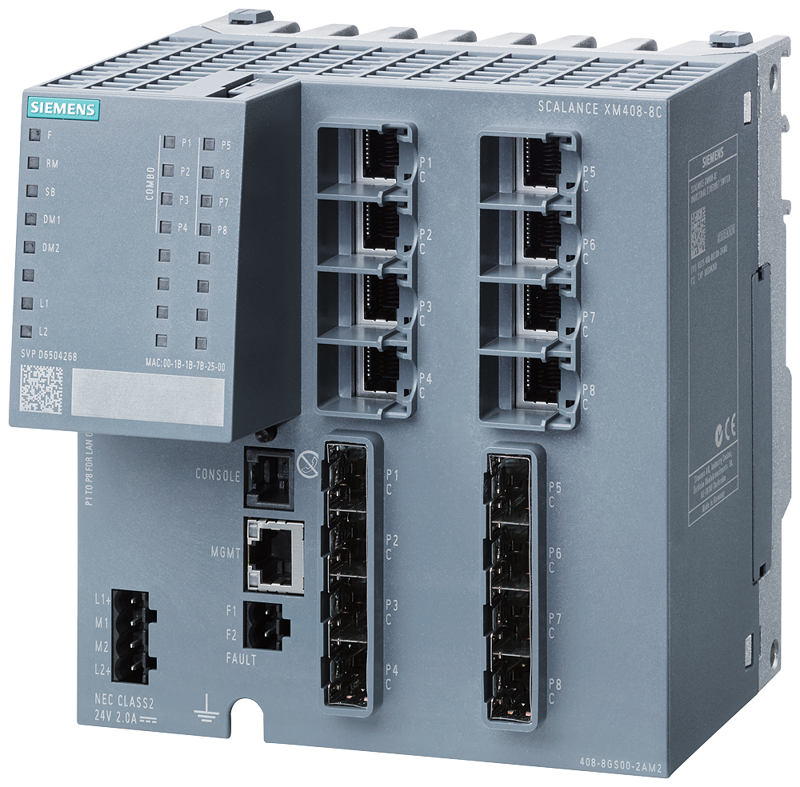

SCALANCE XM408-8C; managed modular IE switch; 8x 10/100/1000 Mbit/s RJ45; 8x ...
SKU: 6GK5408-8GR00-2AM2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XM408-8C; controlled modular IE switch; 8x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP; incorporates 8 combination ports; in all, 8 ports can be used; extensible to 24 electrical or optical ports.
Assembly: DIN rail/S7 mounting rail, PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP, etc.); C-PLUG in scope of supply; layer 3 integration.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s.
Interfaces / for communication / integrated:
Number of electrical connections for network components or terminal equipment: 8; RJ45 with securing collar.
Number of 10/100/1000 Mbit/s RJ45 ports with securing collar: 8.
Number of electrical connections for SFP: 8; 100 Mbit/s or 1000 Mbit/s SFP plug-in transceiver.
Number of combo ports / with RJ45 interface for optical plug-in transceiver: 8; 100 Mbit/s or 1000 Mbit/s SFP plug-in transceiver.
Interfaces / for communication / plug-in:
Number of 10/100/1000 Mbit/s RJ45 ports:
With securing collar: 16.
With securing collar / with PoE: 16.
Number of 100 Mbit/s LC ports:
For multimode: 24.
For single mode (LD): 24.
For single mode (LH+): 24.
For single mode (ELH200): 24.
Number of 1000 Mbit/s LC ports:
For multimode: 24.
For single mode (LD): 24.
For single mode (LH): 24.
For single mode (LH+): 24.
For single mode (ELH): 24.
Number of electrical connections for SFP: 24.
Interfaces / other:
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For operator console: RJ11.
For management purposes: RJ45.
For signalling contact: 2-pole terminal block.
Number of extender expansion interfaces: 2.
Design of the removable storage: C-PLUG.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Supplied active power / of PSE / with PoE:
Per port / maximum: 30 W.
Total / maximum: 360 W.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: modular.
Width: 140 mm.
Height: 147 mm.
Depth: 125 mm.
Fastening method:
35 mm top hat DIN rail mounting.
S7-300 rail mounting.
S7-1500 rail mounting.
