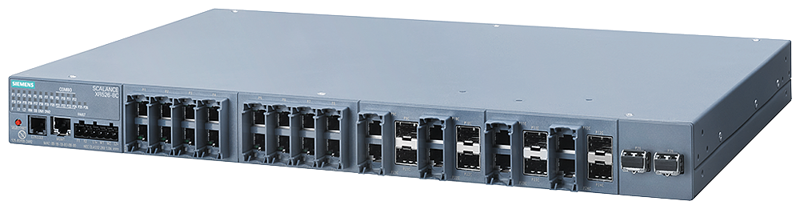

SCALANCE XR526-8C; managed IE switch; Layer 3 integrated; power supply 230 V
SKU: 6GK5526-8GR00-3AR2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XR526-8C controlled IE switch; Layer 3 integrated; power supply 230 V AC; 24x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP Combo; 2x 10 Gbit/S SFP+; in total 26 ports can be used.
Error signalling contact; select/set pushbutton; PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP, etc.); C-plug included in the supply scope.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s.
Interfaces / for communication / integrated:
Number of electrical connections for network components or terminal equipment: 24; RJ45.
Number of 100 Mbit/s ST(BFOC) ports for multimode: 0.
Number of 100 Mbit/s SC ports for multimode: 0.
Number of electrical connections:
For SFP: 8.
For SFP+: 2.
Number of combo ports / with RJ45 interface for optical plug-in transceiver: 8.
Interfaces / for communication / plug-in, number of electrical connections:
For SFP: 10.
For SFP+: 2.
Other interfaces:
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For operator console: RJ11.
For management purposes: RJ45.
For signalling contact: 2-pole terminal block.
For power supply: 4-pole terminal block.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Ambient temperature:
During operation: 0 ... 50 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: 19" rack.
Number of modular height units / relating to 19-inch cabinet: 1.
Width: 449 mm.
Height: 44 mm.
Depth: 305 mm.
Fastening method: 19-inch installation.
Type of cable outlet: Cable outlet at front.
