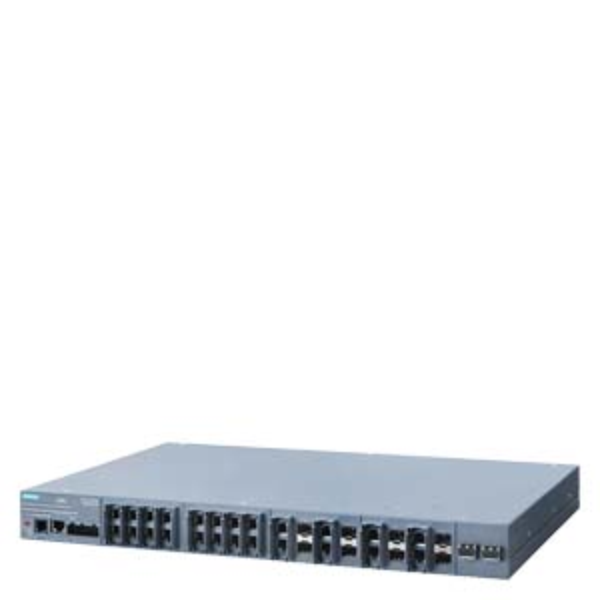

SCALANCE XR526-8C; managed IE switch; layer 3 with Key-Plug available
SKU: 6GK5526-8GS00-3AR2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
XR526-8C; managed IE switch; layer 3 with Key-Plug available; 230 V AC power supply; 24x 10/100/1000 Mbit/s RJ45; 8x 100/1000 Mbit/s SFP Combo; 2x 10 Gbit/s SFP+; a total of 26 ports available for use; error signalling contact; select/set pushbutton; PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP, etc.); C-PLUG included in the supply.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SCALANCE.
Product type designation: XR526-8C.
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s.
Interfaces / for communication / integrated:
Number of electrical connections for network components or terminal equipment: 24; RJ45.
Number of 100 Mbit/s ST(BFOC) ports for multimode: 0.
Number of 100 Mbit/s SC ports for multimode: 0.
Number of electrical connections:
For SFP: 8.
For SFP+: 2.
Number of combo ports / with RJ45 interface for optical plug-in transceiver: 8.
Number of electrical connections:
For SFP: 10.
For SFP+: 2.
Interfaces:
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
For power supply: 1.
Type of electrical connection:
For operator console: RJ11.
For management purposes: RJ45.
For signalling contact: 2-pole terminal block.
For power supply: 4-pole terminal block.
Product feature / hot-swappable interface modules: Yes.
Operating voltage / of the signalling contacts at DC / rated value: 24V.
Operational current / of the signalling contacts at DC / maximum: 0.1A.
Supply voltage, current consumption, power loss:
Product component / connection for redundant voltage supply: Yes.
Type of voltage / 1 / of the supply voltage: AC.
Supply voltage / 1 / rated value: 230.
Power loss [W] / 1 / rated value: 36 W.
Supply voltage / 1 / rated value: 90 – 264V.
Consumed current / 1 / maximum: 1.5A.
Type of electrical connection / 1 / for power supply: 4-pole terminal block.
Product component / 1 / fusing at power supply input: Yes.
Fuse protection type / 1 / at input for supply voltage: 3.15A / 250V.
Ambient temperature:
During operation: 0 – 50°C.
During storage: -40 - +85°C.
During transport: -40 - +85°C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95%.
Protection class IP: IP20.
Design and dimensions:
Design: 19-Inch rack.
Number of modular height units / relating to 19-inch cabinet: 1.
Width: 449 mm.
Height: 44 mm.
Depth: 305 mm.
Fastening method: 19-inch installation.
Type of cable outlet: Cable outlet at front.
