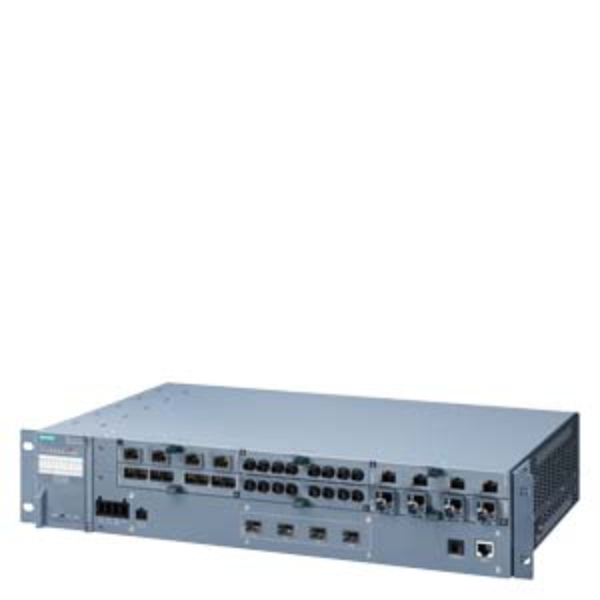

SCALANCE XR528-6M; managed IE switch; 19" rack
SKU: 6GK5528-0AA00-2HR2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XR528-6M; controlled IE switch; 19" rack; 4x 1000/10000 Mbit/s SFP+ and 6x 100/1000 Mbit/s Four-port media modules, electrical, electrical PoE, or optical; LED diagnostics; fault signalling contact Select/set pushbutton, PROFINET IO device, network management, integrated redundancy manager; office features (RSTP, VLAN, IGMP, etc.); C-plug in scope of delivery Layer 3 ready; ports in the back.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SCALANCE.
Product type designation: XR528-6M.
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s.
Interfaces / for communication / integrated:
Number of electrical connections:
For network components or terminal equipment: RJ45.
For Power-over-Ethernet / for network components or terminal equipment: 12.
For SFP+: 4.
Number of 100 Mbit/s ST(BFOC) ports:
For multimode: 24.
For single mode (LD): 24.
Number of 100 Mbit/s SC ports:
For multimode: 24.
For single mode (LD): 24.
Number of electrical connections:
For SFP: 4.
For SFP+: 4.
Interfaces:
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
For media module: 6.
For power supply: 1.
Type of electrical connection:
For operator console: RJ11.
For management purposes: RJ45.
For signalling contact: 2-pole terminal block.
For power supply: 4-pole terminal block.
Product feature / hot-swappable interface modules: Yes.
Operating voltage / of the signalling contacts at DC / rated value: 24V.
Operational current / of the signalling contacts at DC / maximum: 0.1A.
Supply voltage, current consumption, power loss:
Supplied active power / of PSE / with PoE:
Per port / maximum: 30W.
Total / maximum: 180W.
Type of voltage / 1 / of the supply voltage: DC.
Supply voltage / 1 / rated value: 24V.
Power loss [W] / 1 / rated value: 22 W.
Supply voltage / 1 / rated value: 19.2 – 28.8V.
Consumed current / 1 / maximum: 11.5A.
Type of electrical connection / 1 / for power supply: 4-pole terminal block.
Product component / 1 / fusing at power supply input: Yes.
Fuse protection type / 1 / at input for supply voltage: F 15A / 125V.
Ambient temperature:
During operation: 0 – 60°C.
During storage: -40 - +70°C.
During transport: -40 - +70°C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95%.
Protection class IP: IP20.
Design and dimensions:
Design: 19-Inch rack.
Number of modular height units / relating to 19-inch cabinet: 2.
Width: 449 mm.
Height: 87.2 mm.
Depth: 305 mm.
Fastening method: 19-inch installation.
Type of cable outlet: Cable outlet at rear.
