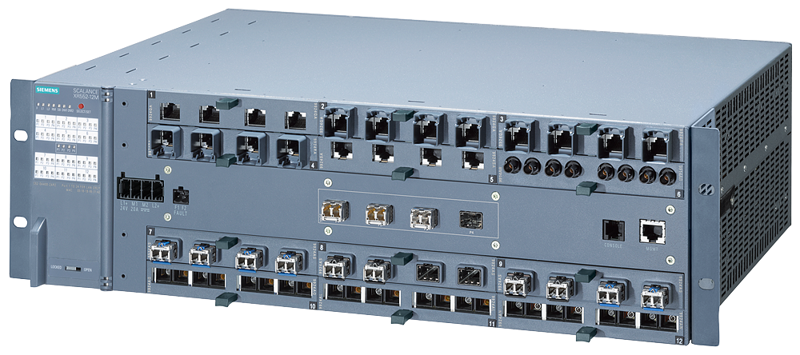

SCALANCE XR552-12M; managed IE switch; 19" rack; 4x 1000/10000 Mbit/s SFP+; 1
SKU: 6GK5552-0AA00-2AR2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SCALANCE XR552-12M; controlled IE switch; 19" rack; 4x 1000/10000 Mbit/s SFP+ and 12x 100/1000 Mbit/s.
4-port media modules, electrical, electrical PoE, or optical; LED diagnostics; error signalling contact.
Select/set pushbutton, PROFINET IO device, network management, integrated redundancy manager; office features (RSTP, VLAN, IGMP, etc.); C-plug in scope of supply Layer 3 ready; front-facing ports.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s.
Interfaces / for communication / integrated:
Number of electrical connections for network components or terminal equipment: RJ45.
For Power-over-Ethernet / for network components or terminal equipment: 12.
Number of electrical connections for SFP+: 4.
Interfaces / for communication / plug-in:
Number of 100 Mbit/s ST(BFOC) ports:
For multimode: 48.
For single mode (LD): 48.
Number of 1000 Mbit/s SC ports:
For multimode: 48.
For single mode (LD): 48.
Number of electrical connections:
For SFP: 4.
For SFP+: 4.
Other interfaces:
Number of electrical connections:
For operator console: 1.
For signalling contact: 1.
For media module: 12.
For power supply: 1.
Type of electrical connection:
For operator console: RJ11.
For management purposes: RJ45.
For signalling contact: 2-pole terminal block.
For power supply: 4-pole terminal block.
Operating voltage / of the signalling contacts at DC / rated value: 24 V.
Operational current / of the signalling contacts at DC / maximum: 0.1 A.
Supplied active power / of PSE / with PoE:
Per port / maximum: 30 W.
Total / maximum: 180 W.
Ambient temperature:
During operation: 0 ... 60 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Relative humidity at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Design: 19" rack.
Number of modular height units / relating to 19-inch cabinet: 3.
Width: 449 mm.
Height: 130.8 mm.
Depth: 305 mm.
