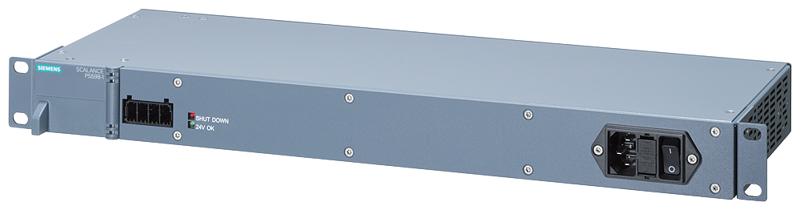

Power supply PS598-1, 300W, input 85-264 V AC, IEC plug

Specifications: Type of current supply: 300 W, input: 85-264 V, output: DC 24. Electrical data / input: Voltage curve / at input: AC single phase. Supply voltage / at AC: 85 ... 264 V. Supply voltage / 1 / at AC / rated value: 230 V. Buffering time / for rated value of the output current / in the event of power failure / minimum: 16 MS. Line frequency: 1 / rated value: 50 Hz. 2 / rated value: 60 Hz. Input current / at rated input voltage 230 V / rated value: 1.8 A. Current limitation / of inrush current / at 25 °C / maximum: 40 A. Fuse protection type / at input: replaceable. Electrical data / output: Voltage curve / at output: Controlled, isolated DC voltage. Output voltage at DC / rated value: 24 V. Startup delay time / maximum: 1.5 s. Voltage increases time / of the output voltage / maximum: 15 MS. Output current: Rated value: 12.5 A. Rated range: 0 ... 12.5 A. Supplied active power / typical: 300 W. Number of parallel-switched equipment resources / for increasing the power: 2. Power loss: 39 W. Electrical data / closed-loop control: Residual ripple / maximum: 0.36 V. Voltage peak / maximum: 240 V. Electrical data / protection and monitoring: Response value current limitation / typical: 1.15 A. Design of short-circuit protection: Electronic shutdown, automatic restart. Leakage current: Maximum: 3 Ma. Typical: 0.858 mA. Interfaces, type of electrical connection: At input: IEC plug. At output: for plugging into basic device or screw terminal in accordance with specification. Width: 446 mm. Height: 44 mm. Depth: 140 mm. Fastening method (Plugged into the basic unit or rack mounted): 19-inch installation. Ambient temperature: During operation: 60 °C. During storage: -25 ... +70 °C. During transport: -25 ... +70 °C, Operation with integral fan, non-replaceable. Protection class IP: IP20.
