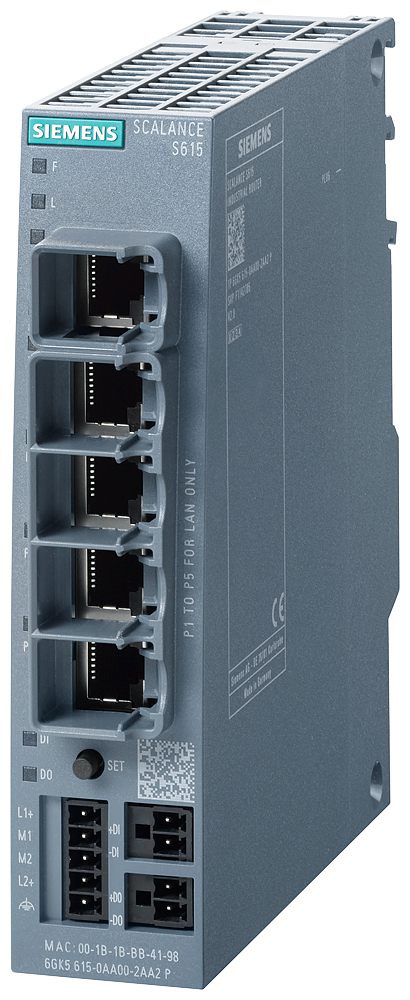

SCALANCE S615 Industrial Security Appliance, VPN, firewall, 5x RJ45
SKU: 6GK5615-0AA00-2AA2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is S615.
SCALANCE S615 LAN router; for the protection of devices/networks in automation technology, as well as the protection of industrial communication via VPN and firewall.
Additional features include address conversion (NAT/NAPT), connection to SINEMA RC, a 5-port switch, one digital input, and one digital output.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s.
interfaces:
number of electrical/optical connections / for network components or terminal equipment / maximum: 5.
number of electrical connections:
for power supply: 1.
for redundant voltage supply: 1.
type of electrical connection:
for power supply: 5-pole terminal block.
design of the removable storage / C-PLUG: Yes.
Buy currently uses Select Automation shop pricing and checkout.
signal inputs/outputs:
number of electrical connections:
for digital input signals: 1.
for digital output signals: 1.
type of electrical connection:
for digital input signals: 2-pole terminal block.
for digital output signals: 2-pole terminal block.
supply voltage, current consumption, power loss:
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V.
power loss [W] / 1 / rated value: 4 W.
supply voltage / 1 / rated value: 10.8 ... 28.8 V.
consumed current:
at DC / at 24 V / typical: 0.2 A.
product component / 1 / fusing at power supply input: Yes.
fuse protection type / 1 / at input for supply voltage: Non-replaceable melting fuse (F 2 A5 / 32 V).
ambient conditions:
ambient temperature:
during operation: -40 ... +70 °C.
during storage: -40 ... +80 °C.
during transport: -40 ... +80 °C.
relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 35 mm.
height: 147 mm.
depth: 127 mm.
net weight: 0.4 kg.
fastening method:
35 mm top hat DIN rail mounting: Yes.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: Yes.
Accessories:
product extension / optional:
C-PLUG: Yes.
KEY-PLUG: Yes.
Accessories: optional KEY-PLUG.
