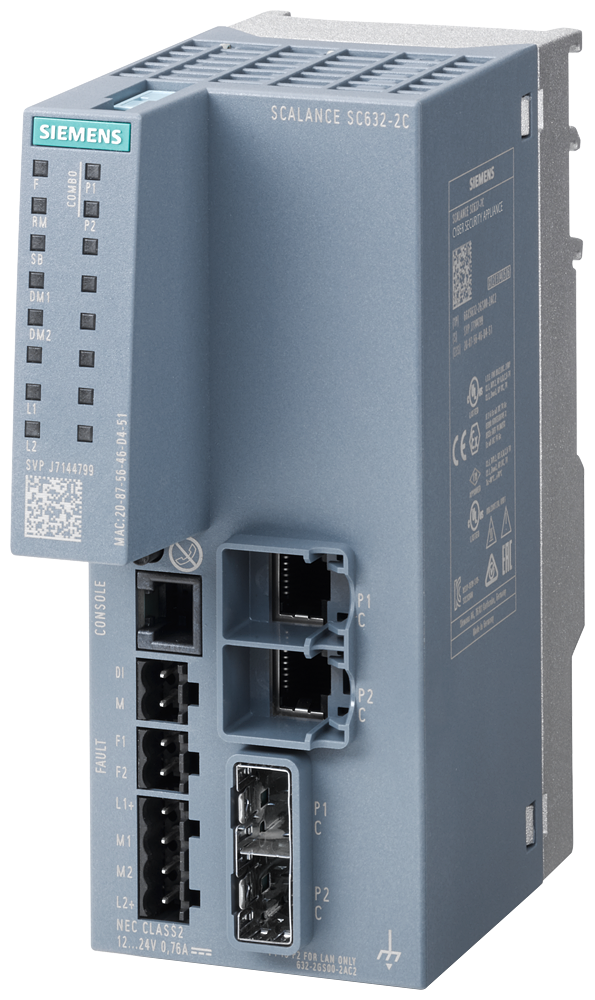

SCALANCE SC632-2C Industrial Security Appliance, firewall, 2x combo
SKU: 6GK5632-2GS00-2AC2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is SC632-2C.
SCALANCE SC632-2C Industrial Security Appliance; For security of devices and networks in discrete production and the process industry for protection of industrial communication with a firewall.
Further functions: Address conversion (NAT/NAPT); Connection with SINEMA RC; 2x electrical or optical combination ports; 10/100/1000 Mbit/s RJ45 or 100/1000 Mbit/s SFP.
transfer rate:
transfer rate: 10 Mbit/s, 100 Mbit/s, 1000 Mbit/s.
interfaces:
number of electrical/optical connections / for network components or terminal equipment / maximum: 2.
number of electrical connections:
for signaling contact 1
for power supply: 1.
for redundant voltage supply: 1.
type of electrical connection:
for signaling contact: 2-pole terminal block
for power supply: 4-pole terminal block.
design of the removable storage / C-PLUG: Yes.
Buy currently uses Select Automation shop pricing and checkout.
signal inputs/outputs:
number of electrical connections:
for digital input signals: 1.
type of electrical connection:
for digital input signals: 2-pole terminal block.
for digital output signals: 2-pole terminal block.
operating voltage / of the signalling contacts / at DC / rated value: 24 V.
operational current / of the signalling contacts / at DC / maximum: 0.1 A.
supply voltage, current consumption, power loss:
type of voltage / 1 / of the supply voltage: DC.
supply voltage / 1 / rated value: 24 V; (with plugged-in SFPs).
power loss [W] / 1 / rated value: 9.12 W.
supply voltage / 1 / rated value: 9.6 ... 31.2 V.
consumed current:
1 / maximum: 0.38 A.
ambient conditions:
ambient temperature:
during operation: -40 ... +70 °C.
during storage: -40 ... +85 °C.
during transport: -40 ... +85 °C.
relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
protection class IP: IP20.
design, dimensions and weights:
design: compact.
width: 60 mm.
height: 145 mm.
depth: 125 mm.
net weight: 0.58 kg.
fastening method: Fixing bolt with additional screw protection.
fastening method:
35 mm top hat DIN rail mounting: Yes.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: Yes.
wall mounting: Yes.
Accessories:
product extension / optional:
C-PLUG: Yes.
