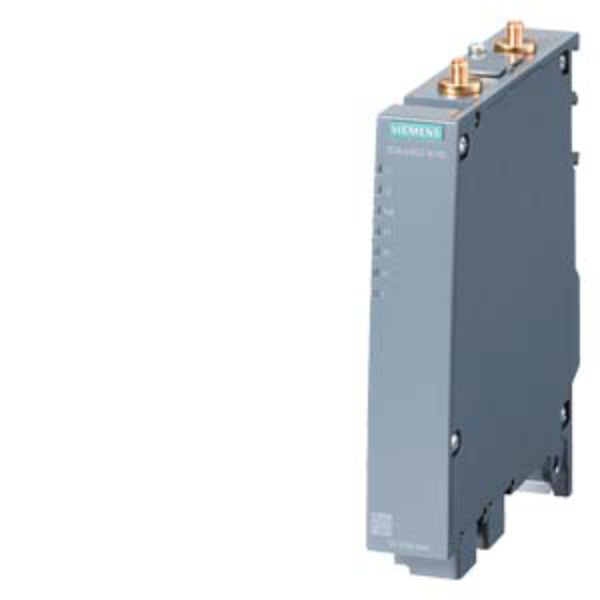

IWLAN client, SCALANCE W734-1, RJ45 (USA)
SKU: 6GK5734-1FX00-0AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This IWLAN client supports IEEE 802.11a/b/g/h/n across 2.4 GHz and 5 GHz bands, delivering up to 300 Mbps gross data rate.
It features 2× RJ45 Ethernet ports, PoE support, and redundant 24 V DC input.
With KEY-PLUG compatibility, it enables advanced iFeatures like iPCF, iPCF-MC, and iPRP, making it ideal for mobile automation nodes in U.S.-based deployments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Wireless Standards: IEEE 802.11a/b/g/h/n.
Frequency Bands: 2.4 GHz / 5 GHz.
Max WLAN Data Rate: 300 Mbps.
Ethernet Ports: 2 × RJ45 (10/100 Mbps).
Antenna Ports: 2 × R-SMA (external).
PoE Support: IEEE 802.3af/at.
Power Supply: 24 V DC or PoE.
Mounting Options: DIN rail, wall, S7-300/S7-1500 rail.
Protection Class: IP30.
Operating Temp: –20 °C to +60 °C.
Dimensions (W×H×D): 26 × 156 × 127 mm.
Weight: ~520 g.
iFeatures Support: iPCF, iPCF-MC, iPRP (via KEY-PLUG W780/W740).
Management Interfaces: Web UI, CLI, SNMPv1/v2/v3, STEP 7, TIA Portal.
Security Protocols: WPA2, IEEE 802.11i/e, ACL, SSH, IEEE 802.1x.
Redundancy Protocols: STP, RSTP, MSTP.
Marine & Hazardous Approvals: ABS, BV, DNV, NK, PRS, ATEX, IECEx.
FCC ID: LYHMSN1V1.
