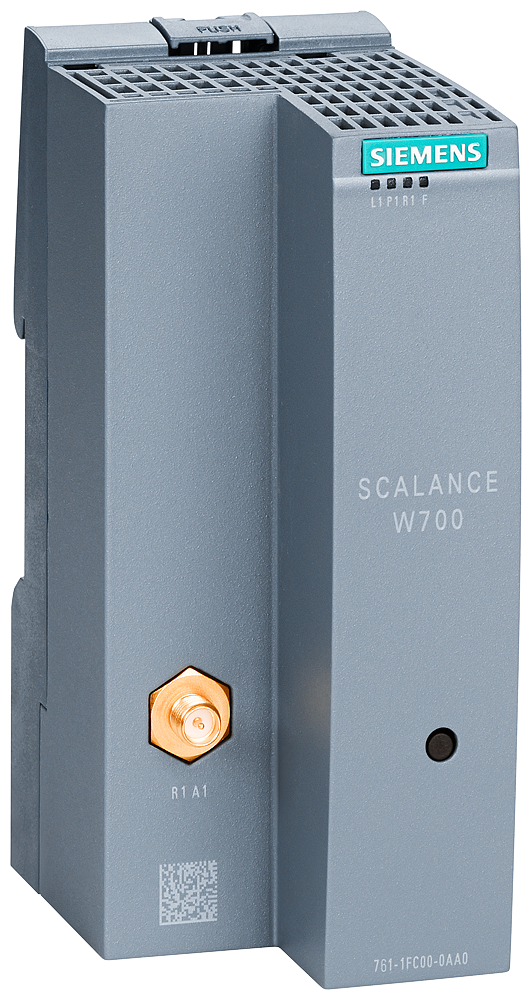

IWLAN AP, 150 Mbps, RJ45, 1x wireless, 1x R-SMA
SKU: 6GK5761-1FC00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
IWLAN Access Point, SCALANCE W761-1 RJ45, 1 radio, 1 R-SMA antenna port, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 150 Mbit/s, 1x RJ45 max. 100 Mbit/s, 24 V DC, joint block, IP20, 0 °C to +55 °C, WPA2/802.11i/e, follow national approvals.
CERT ID: ELN-W1-RJ-E1, scope of delivery: Manuals on CD-ROM German/English, 1x joint block; for operation outside of the United States and Israel.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate:
With WLAN / maximum: 150 Mbit/s.
For Industrial Ethernet: 10, 100 Mbit/s.
Transfer rate / for Industrial Ethernet:
Minimum: 10 Mbit/s.
Maximum: 100 Mbit/s.
Number of electrical connections:
For network components or terminal equipment: 1.
For power supply: 1.
For redundant voltage supply: 0.
Type of electrical connection:
For network components or terminal equipment: RJ45 socket.
For power supply: 3-pole screw terminal.
Design of the removable storage:
C-PLUG.
KEY-PLUG.
Number of radio cards / permanently installed: 1.
Number of electrical connections / for external antenna(s): 1.
Type of electrical connection / for external antenna(s): R-SMA (socket).
Type of voltage / of the supply voltage: DC.
Consumed current at DC / at 24 V / typical: 0.15 A.
Power loss at DC / at 24 V / typical: 3.6 W.
Ambient temperature:
During operation: 0 ... 55 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP20.
Width: 50 mm.
Height: 114 mm.
Depth: 74 mm.
Fastening method: 35 mm top hat DIN rail mounting.
