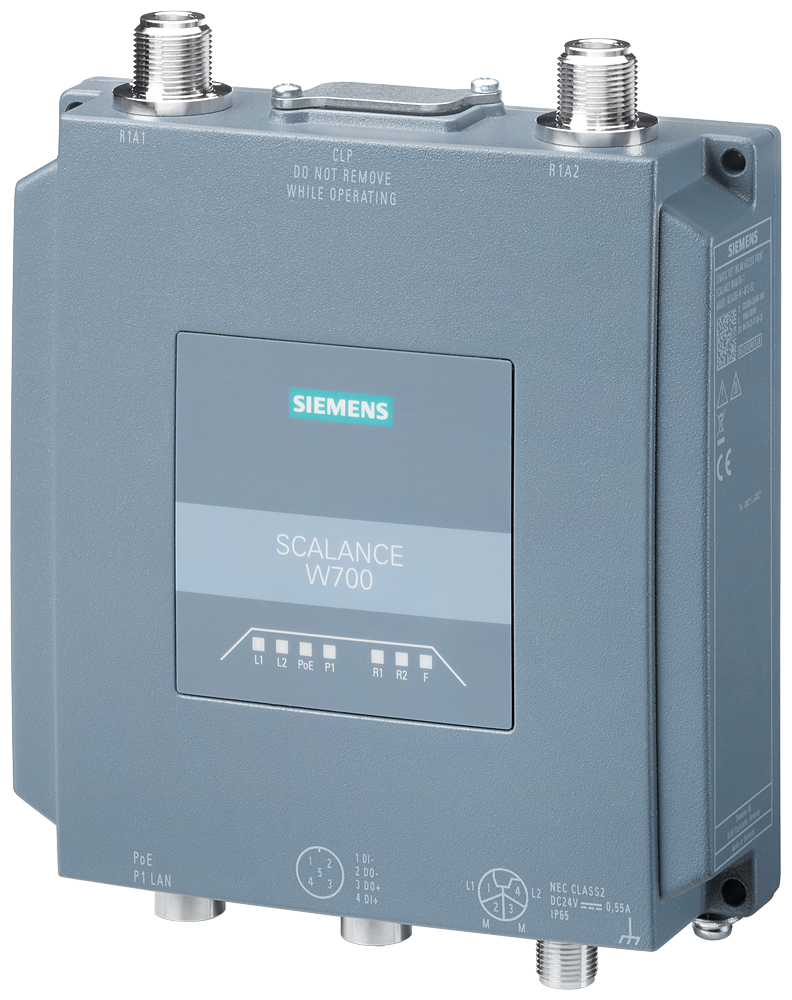

IWLAN Access Point, SCALANCE WAM766-1, 1 radio, 2.4/5 GHz 2 N-Connect connections
SKU: 6GK5766-1GE00-7DA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
IWLAN Access Point, SCALANCE WAM766-1, 1 radio, 2.4/5 GHz, IEEE 802.11ax (Wi-Fi 6), 2 N-Connect connections, I Features support via CLP, 1201 Mbps (gross) per radio, 1x 10/100/1000 Mbps M12 socket, redundant 24 V DC, M12 L-coded, PoE, IP65, -30...+60 °C, CLP slot, DI/DO, A-coded, follow national approvals.
Certificate ID: MSAX65-W1-M12-E2, FCC ID: LYHMSAX65V1.
operation outside of the USA/Israel.
The scope of supply includes sealing caps for connectors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate:
With WLAN / maximum: 1201 Mbit/s.
For Industrial Ethernet: 10, 100, 1000 Mbit/s.
Transfer rate / for Industrial Ethernet:
Minimum: 10 Mbit/s.
Maximum: 1000 Mbit/s.
Number of electrical/optical connections / for network components or terminal equipment / maximum: 1.
Number of electrical/optical connections / for gigabit Ethernet / maximum: 1.
Number of electrical connections:
For network components or terminal equipment: 1.
For power supply: 1.
For redundant voltage supply: 1.
Type of electrical connection:
For network components or terminal equipment: M12 interface (8-pole, X-coded), PoE.
For power supply: M12 interface (4-pole, A-coded).
Design of the removable storage:
CLP.
CLP, I Features.
Number of radio cards / permanently installed: 2.
Number of spatial streams: 2.
Number of electrical connections / for external antenna(s): 2.
Type of electrical connection / for external antenna(s): N-Connect (socket).
Number of digital inputs: 1.
Number of digital outputs: 1.
Type of electrical connection / at the digital inputs/outputs: M12 interface (4-pin, A-coded).
Output voltage / at digital output / at DC / maximum: 24 V; 0,5 A.
Type of voltage / of the supply voltage: Redundant 24 V DC Power Supply, M12, L-coded.
Supply voltage from Power-over-Ethernet according to IEEE802.3at for type 2: 48 V.
Consumed current:
At DC / at 24 V: 0.55 A.
At DC / at 24 V / sleep mode / maximum: 0.013 A.
With Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical: 0.27 A.
Ambient temperature:
During operation: -30 ... +60 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 90 %.
Protection class IP: IP65.
Width: 150 mm.
Height: 179.5 mm.
Depth: 45 mm.
Fastening method (Accessories are required for wall mounting and mounting on a mounting rail.):
S7-300 rail mounting.
S7-1500 rail mounting.
35 mm top hat DIN rail mounting.
Wall mounting.
VESA mounting: 75 x 75mm.
