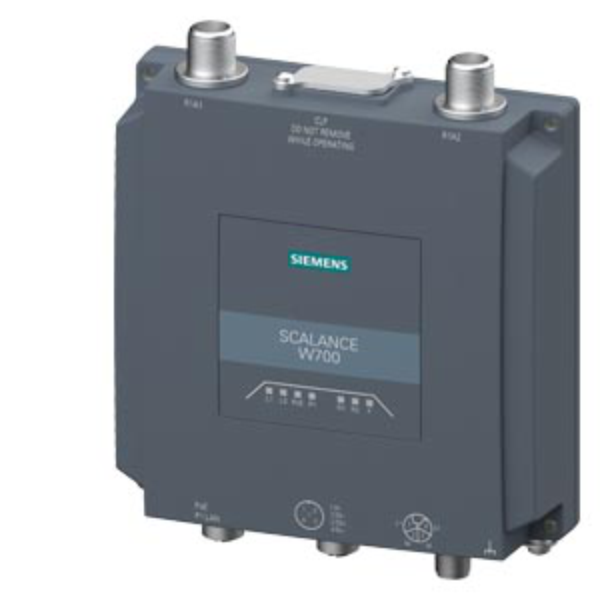

IWLAN Access Point, SCALANCE WAM766-1 EEC, 1 radio, 2.4/5 GHz
SKU: 6GK5766-1GE00-7TB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Description: IWLAN Access Point
IWLAN access point, Scalance WAM766-1 EEC, 1 radio, 2.4/5 GHz, 2 N Connect connections, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross) per radio, 1x10/100/1000 Mbps M12 socket, redundant 24 V DC, M12 L-encoded, PoE, IP65/IP67, -30...+75 °C, CLP slot, DI/DQ, A-encoded, and adhere to national approvals! CERT ID: MSAX65 W1-M12-E2, FCCID: LYHMSAXV1, operation in the US, scope of delivery: sealing caps for connections.
Transfer rate:
With WLAN / maximum 1201 Mbit/s.
For Industrial Ethernet 10, 100, 1000 Mbit/s.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage: Redundant 24 V DC Power Supply, M12, L-coded.
Supply voltage:
From Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af: 48 V.
Consumed current:
At DC / at 24 V: 0.55 A.
At DC / at 24 V / sleep mode / maximum: 0.013 A.
With Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical: 0.27 A.
Power loss [W]:
At DC / at 24 V: 13.2 W.
At DC / at 24 V / sleep mode / maximum: 0.3 W.
With Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical: 12.96 W.
Supply voltage / 1:
From M12 power Connector (L-coded) for redundant voltage supply: 24 V.
Supply voltage / 1 / rated value: 24 V.
Type of voltage / 1 / of the supply voltage: DC.
Supply voltage / 2:
From M12 power Connector (L-coded) for redundant voltage supply: 24 V.
Supply voltage / 2 / rated value: 24 V.
Type of voltage / 2 / of the supply voltage: DC.
Supply voltage / 3 / rated value: 48 V.
Type of voltage / 3 / of the supply voltage: DC, PoE.
Ambient conditions:
Ambient temperature:
During operation: -30 ... +75 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 90 %.
Protection class IP: IP65.
Design, dimensions and weights:
Width: 150 mm.
Height: 179.5 mm.
Depth: 45 mm.
Width / of the enclosure / without antenna: 150 mm.
Height / of the enclosure / without antenna: 179.5 mm.
Depth / of the enclosure / without antenna: 45 mm.
Net weight: 1.1 kg.
Product feature / conformal coating: Yes.
Fastening method: wall mounting and assembly on VESA support 75 x 75 mm, mounting on DIN rail with separate mounting adapter.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: Yes.
35 mm DIN-rail mounting: Yes.
Wall mounting: Yes.
VESA mounting: Yes; 75 x 75mm.
