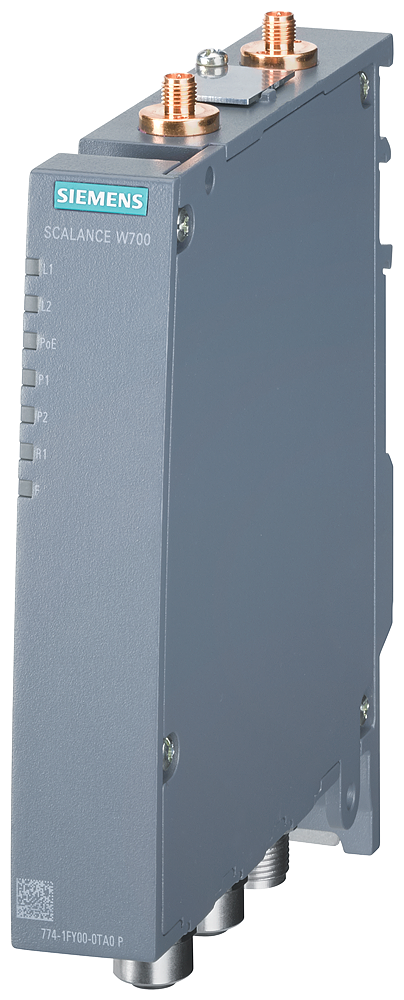

IWLAN AP, 300 Mbps, 2x M12, 1x wireless, 2x R-SMA, plug slot, EEC, USA
SKU: 6GK5774-1FY00-0TB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
IWLAN Access Point, SCALANCE W774-1 M12 EEC, 1 radio, 2 R-SMA antenna ports, I Features support via key plug, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 300 Mbit/s, 2x M12 max. 100 Mbit/s, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP30, -30... 65 °C, plug slot WPA2/802.11i/e, conformal coating EN 50155, observe national approvals.
CERT ID: MSN-W1-M12-E2, scope of delivery: CD-ROM manuals in English and German, M12 sealing caps for use in the United States.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate:
With WLAN / maximum: 300 Mbit/s.
For Industrial Ethernet: 10, 100 Mbit/s.
Transfer rate / for Industrial Ethernet:
Minimum: 10 Mbit/s.
Maximum: 100 Mbit/s.
Number of electrical connections:
For network components or terminal equipment: 2.
For power supply: 1.
For redundant voltage supply: 1.
Type of electrical connection:
For network components or terminal equipment: M12 interface (4-pole, D-coded), PoE.
For power supply: M12 interface (4-pole, A-coded).
Design of the removable storage:
C-PLUG.
KEY-PLUG.
Number of radio cards / permanently installed: 1.
Number of spatial streams: 2.
Number of electrical connections / for external antenna(s): 2.
Type of electrical connection / for external antenna(s): R-SMA (socket).
Type of voltage / of the supply voltage: DC.
Supply voltage from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af: 48 V.
Consumed current at DC / at 24 V / typical: 0.25 A.
Power loss:
At DC / at 24 V / typical: 6 W.
With Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical: 6W.
Ambient temperature:
During operation: -30 ... +65 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 100 %.
Protection class IP: IP30.
Width: 26 mm.
Height: 156 mm.
Depth: 127 mm.
Fastening method (wall mounting only if flat mounted):
S7-300 rail mounting.
S7-1500 rail mounting.
35 mm top hat DIN rail mounting.
Wall mounting.
