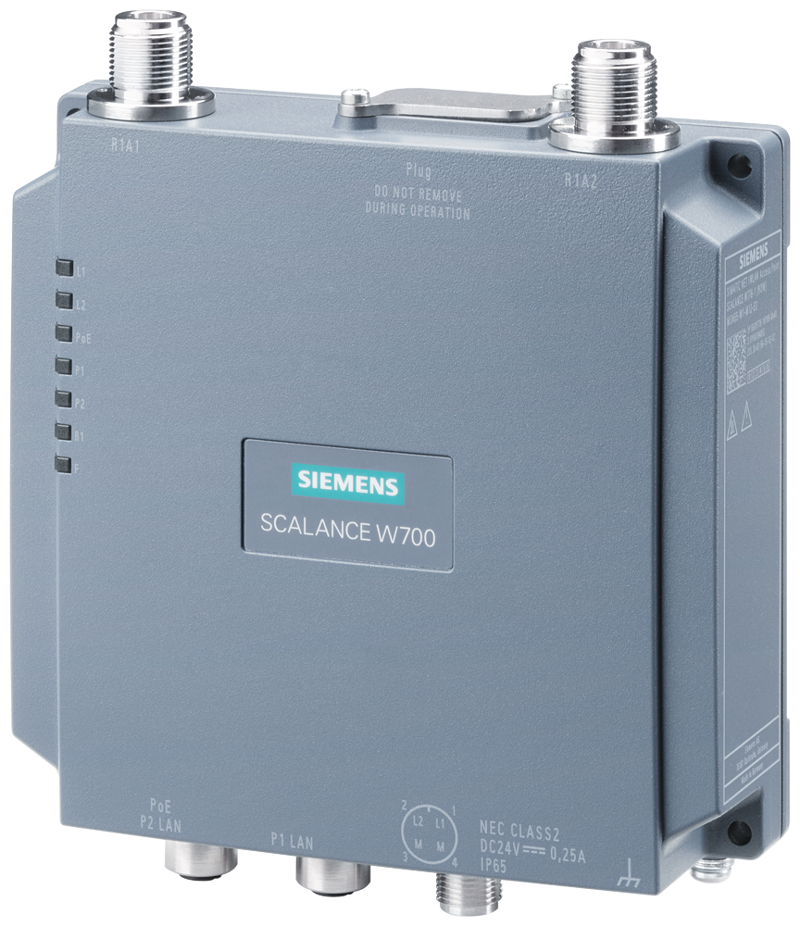

IWLAN AP, 300 Mbps, 2x M12, 1x wireless, 2x N-CON, plug slot
SKU: 6GK5778-1GY00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
IWLAN access point, SCALANCE W778-1 M12, 1 radio, 2 N-CON antenna ports, I Features support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 300 Mbit/s, 2x M12 max. 100 Mbit/s, PoE integrated 2-port switch, redundant 24 V DC, M12 A-coded IP65, -20... 60°C, plug slot WPA2/802.11i/e, observe national approvals.
Certificate ID: MSN65-W1-M12-E2.
Scope of delivery: manuals on CD-ROM in German and English; M12 sealing caps for use outside of the United States and Israel.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate:
With WLAN / maximum: 300 Mbit/s.
For Industrial Ethernet: 10, 100 Mbit/s.
Transfer rate / for Industrial Ethernet:
Minimum: 10 Mbit/s.
Maximum: 100 Mbit/s.
Number of electrical connections:
For network components or terminal equipment: 2.
For power supply: 1.
For redundant voltage supply: 1.
Type of electrical connection:
For network components or terminal equipment: M12 interface (4-pole, D-coded), PoE.
For power supply: M12 interface (4-pole, A-coded).
Design of the removable storage:
C-PLUG.
KEY-PLUG.
Number of radio cards / permanently installed: 1.
Number of spatial streams: 2.
Number of electrical connections / for external antenna(s): 2.
Type of electrical connection / for external antenna(s): N-Connect (socket).
Type of voltage / of the supply voltage: DC.
Supply voltage from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af: 48 V.
Consumed current:
At DC / at 24 V / typical: 0.25 A.
With Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical: 0.125 A
Power loss:
At DC / at 24 V / typical: 6 W.
With Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical: 6W.
Ambient temperature:
During operation: -20 ... +60 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 95 %.
Protection class IP: IP65.
Width: 140 mm.
Height: 160 mm.
Depth: 45 mm.
Fastening method (35 mm DIN rail mounting only per accessories):
35 mm top hat DIN rail mounting.
Wall mounting.
