IWLAN AP, 1733 Mbps, 2x M12, 1x wireless, 4x N-Connect, CLP
SKU: 6GK5788-1GY01-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

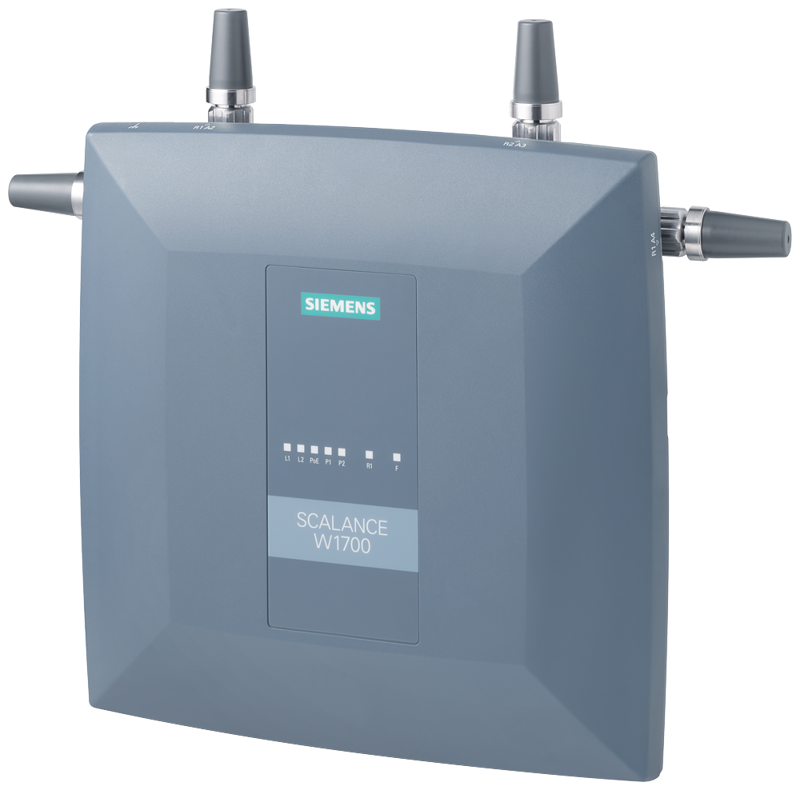

IWLAN access point, SCALANCE W1788-1 M12, 1 radio, 4 N-CON antenna ports.
CLP supports IEEE 802.11a/b/g/h/n/ac, 2.4/5GHz, gross 1733 Mbit/s per radio, 2x M12 max.
1 Gbit/s, PoE, redundant 24 V DC, M12 A-coded IP65, 20. +70°C, CLP slot, WPA2/802.11i/e, and national approvals.
CERT ID: RAPAC-W1-M12-E4, includes: MPCIE-R1-ABGNAC-U4, scope of delivery: M12 sealing caps, for operations outside of the United States and Israel.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Transfer rate:
With WLAN / maximum: 1733 Mbit/s.
For Industrial Ethernet: 10, 100, 1000 Mbit/s.
Transfer rate / for Industrial Ethernet:
Minimum: 10 Mbit/s.
Maximum: 1000 Mbit/s.
Number of electrical/optical connections / for network components or terminal equipment / maximum: 2.
Number of electrical/optical connections / for gigabit Ethernet / maximum: 2.
Number of electrical connections:
For network components or terminal equipment: 2.
For power supply: 1.
For redundant voltage supply: 1.
Type of electrical connection:
For network components or terminal equipment: M12 interface (8-pole, X-coded), PoE.
For power supply: M12 interface (4-pole, A-coded).
Design of the removable storage:
CLP.
CLP, I Features.
Number of radio cards / permanently installed: 1.
Number of spatial streams: 4.
Number of electrical connections / for external antenna(s): 4.
Type of electrical connection / for external antenna(s): N-Connect (socket).
Type of voltage / of the supply voltage: DC.
Supply voltage from Power-over-Ethernet according to IEEE802.3at for type 2: 48 V.
Consumed current:
At DC / at 24 V / typical: 0.375 A.
With Power-over-Ethernet according to IEEE802.3at for type 2 / typical: 0.21 A.
Power loss:
At DC / at 24 V / typical: 10.1 W.
With Power-over-Ethernet according to IEEE802.3at for type 2 / typical: 9 W.
Supply voltage / 1 from M12 Power Connector (A-coded) for redundant power supply: 16.8 V.
Supply voltage / 2 from M12 Power Connector (A-coded) for redundant power supply: 31.2 V.
Ambient temperature:
During operation: -20 ... +70 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Relative humidity / at 25 °C / without condensation / during operation / maximum: 90 %.
Protection class IP: IP65.
Width: 258 mm.
Height: 258 mm.
Depth: 80 mm.
Fastening method (Accessories are required for wall mounting and mounting on a mounting rail.):
S7-300 rail mounting.
S7-1500 rail mounting.
35 mm top hat DIN rail mounting.
Wall mounting.
