Power supply PS...-40-+ 70 °C)
SKU: 6GK5791-2DC00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

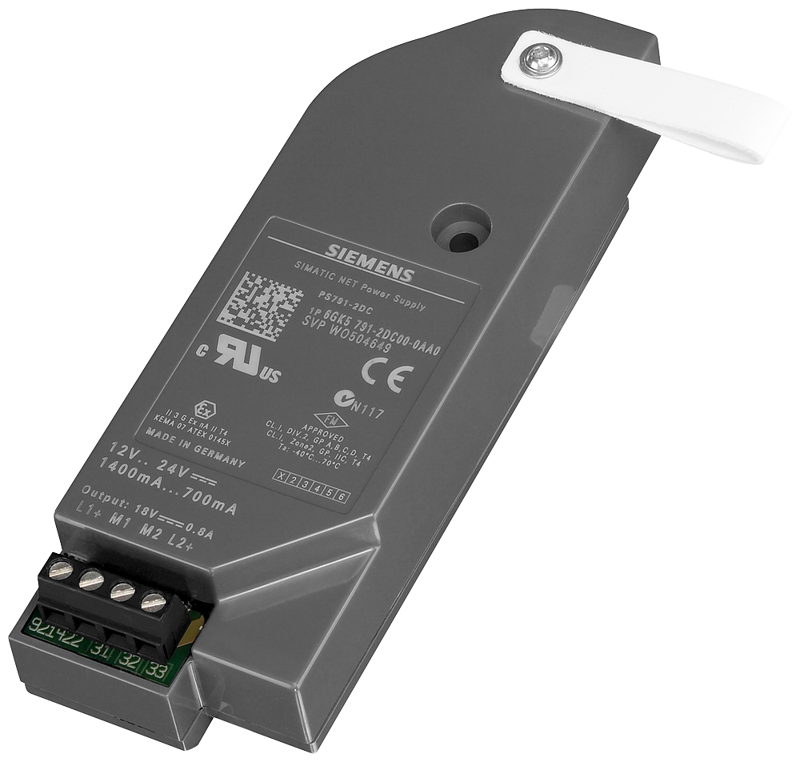

Product type designation: Power Supply PS791-2DC.
Power Supply PS 791-2DC, DC/DC power supply unit, 10 W, IP65 (-40...+70 °C), Input: 12...24 V DC, Output: 18 V DC, can only be used in conjunction with SCALANCE W786; delivery includes operating instructions in German/English.
Type of current supply: 10 W, input: 12-24 V DC, output:18 V DC.
Electrical data / input:
Supply voltage / 1 / rated value: 12 V.
Supply voltage / 1 / rated value: 9 ... 32 V.
Type of voltage / 1 / of the supply voltage: DC, safety extra-low voltage (SELV).
Supply voltage / 2 / rated value: 24 V.
Supply voltage / 2 / rated value: 9 ... 32 V.
Type of voltage / 2 / of the supply voltage: DC, safety extra-low voltage (SELV).
Buffering time / for rated value of the output current / in the event of power failure / minimum: 14,4.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data / output:
Output voltage:
At DC / rated value: 18 V.
Supplied active power / typical: 14.4 W.
Electrical data / safety:
Operating resource protection class: VDE 0805, VDE 0100.
Interfaces:
Type of electrical connection:
At input: 4-pole screw-type terminal for DC power.
At output: 4 pin connector.
Design, dimensions and weights:
Width: 133 mm.
Height: 45 mm.
Depth: 30 mm.
Net weight: 0.223 kg.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +60 °C.
Protection class IP: IP65.
Standards, specifications, approvals:
Standard:
For safety / from CSA and UL: EN 60950, UL 60950-1.
Reference code:
According to IEC 81346-2:2019: TBA.
Standards, specifications, approvals / hazardous environments:
Certificate of suitability / CCC / for hazardous zone according to GB standard: Yes; GB3836.1, GB3836.8.
Certificate of suitability / CCC / for hazardous zone according to GB standard / as marking: Ex nA IIC T4 Gc.
