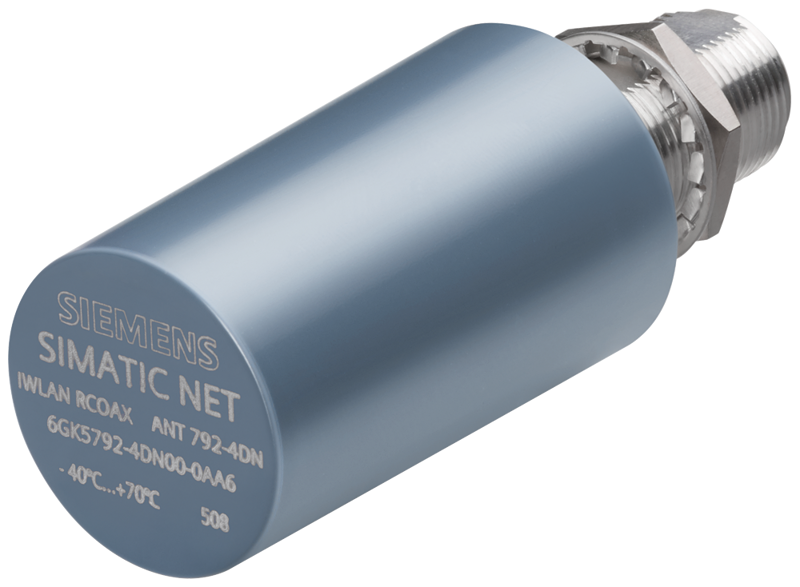

Antenna ANT792-4DN, IWLAN/RCoax, helix circular, 2.4GHz, 4 dBi, N-female, IP65
SKU: 6GK5792-4DN00-0AA6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT792-4DN IWLAN antenna for RCoax systems, 4 DBI Helix antenna, circular polarization clockwise, with N-female plug IP65 (-40-+70 °C), 2.4 GHz.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
Operating frequency for WLAN in 2.4 GHz frequency band: 2.4 ... 2.4835 GHz.
Standing wave ratio (VSWR) / maximum: 1.8.
Radiating angle of the antenna in the 2.4 GHz frequency band / horizontal: 90°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Material of outer shell: Polycarbonate.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Protection class IP: IP65.
Height: 78.7 mm.
Diameter: 30 mm.
