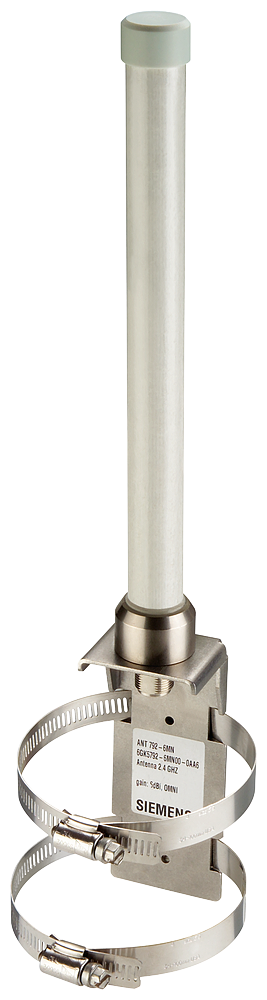

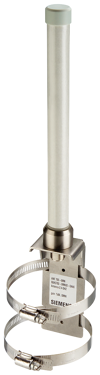

Antenna ANT 792-6MN, IWLAN, omnidirectional, 2.4 GHz, 6 dBi, N-female, IP67
SKU: 6GK5792-6MN00-0AA6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT792-6MN IWLAN antenna with omnidirectional characteristic incl. N-female plug: 6 DBI IP67 (-40-+70 °C); 2.4 GHz; Wi-Fi compliance and observe national approvals; mounting on wall or tower; compact instructions in hard form.
German/English; delivery includes 1x ANT792-6MN and 1x TI795 1R terminating resistor.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
Operating frequency for WLAN in 2.4 GHz frequency band: 2.4 ... 2.5 GHz.
Standing wave ratio (VSWR) / maximum: 1.8.
Radiating angle of the antenna:
In the 2.4 GHz frequency band / horizontal: 360°.
In the 2.4 GHz frequency band / vertical: 30°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Material of outer shell: Glass fiber.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Protection class IP: IP67.
Width: 50 mm.
Height: 370 mm.
Depth: 40 mm.
Fastening method:
Mast mounting.
Wall mounting.
