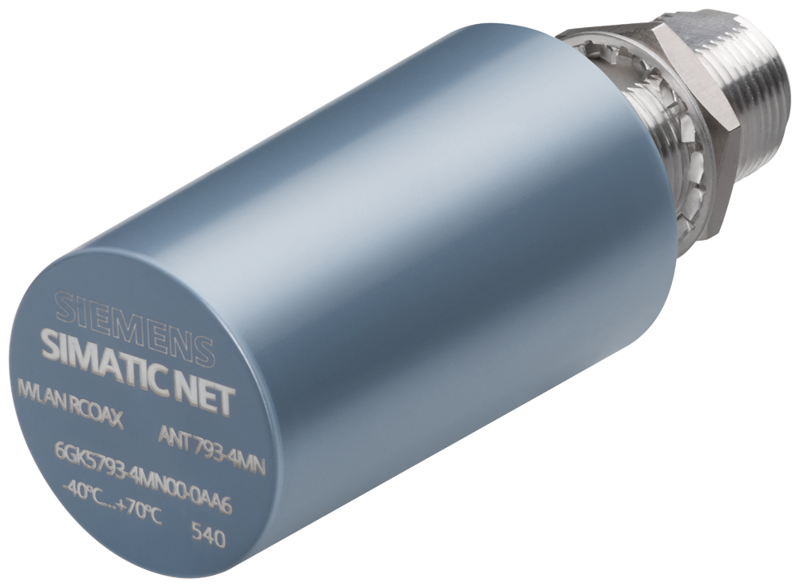

Antenna ANT793-4MN, IWLAN/Rcoax, L/4, omnid., 5 GHz, 6 dBi, N-female, IP65
SKU: 6GK5793-4MN00-0AA6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT793-4MN IWLAN antenna for RCoax systems; Lambda/4 with omnidirectional characteristics, 6 DBI, N-female plug IP65 (-40 to +70 °C), 5 GHz.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
Operating frequency for WLAN in 2.4 GHz frequency band: 5.15 ... 5.85 GHz.
Standing wave ratio (VSWR) / maximum: 2.
Radiating angle of the antenna:
In the 2.4 GHz frequency band / horizontal: 360°.
In the 2.4 GHz frequency band / vertical: 40°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Material of outer shell: Polycarbonate.
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +70 °C.
During transport: -40 ... +70 °C.
Protection class IP: IP65.
Height: 78.7 mm.
Diameter: 30 mm.
