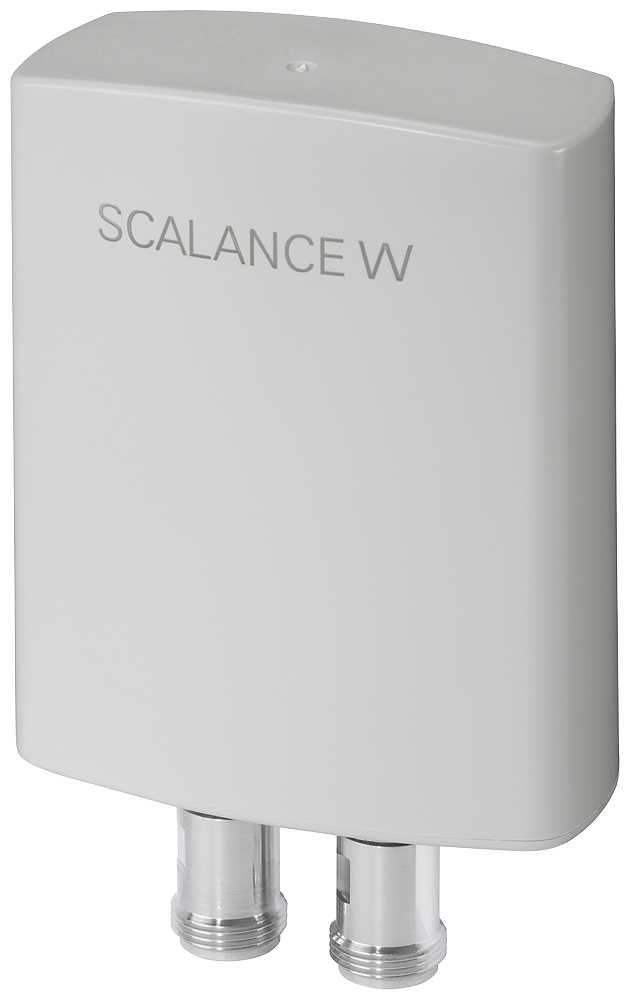

Antenna ANT 793-6DG, IWLAN, sector (dual slant), 5 GHz, 9 dBi, N-female, IP66/67
SKU: 6GK5793-6DG00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Antenna ANT793-6DG for WLAN.
Dual-slant antenna with weak directional effect, including 2x N-female connectors: 9 DBI; IP66/67 (-40-+80 °C), 5 GHz; Wi-Fi compliance and national approvals; wall or mast mounting; compact instructions in hard copy German/English; scope of delivery: 1x ANT793-6DG, 1x mounting aid for alignment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
Operating frequency for WLAN in 2.4 GHz frequency band: 5.15 ... 5.875 GHz.
Standing wave ratio (VSWR) / maximum: 2.
Radiating angle of the antenna:
In the 2.4 GHz frequency band / horizontal: 70°.
In the 2.4 GHz frequency band / vertical: 60°.
Number of electrical connections / of the antenna: 2.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Material of outer shell: Lexan EXL 9330.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Protection class IP: IP66/67.
Width: 80 mm.
Height: 101 mm.
Depth: 35 mm.
Fastening method:
Mast mounting.
Wall mounting.
