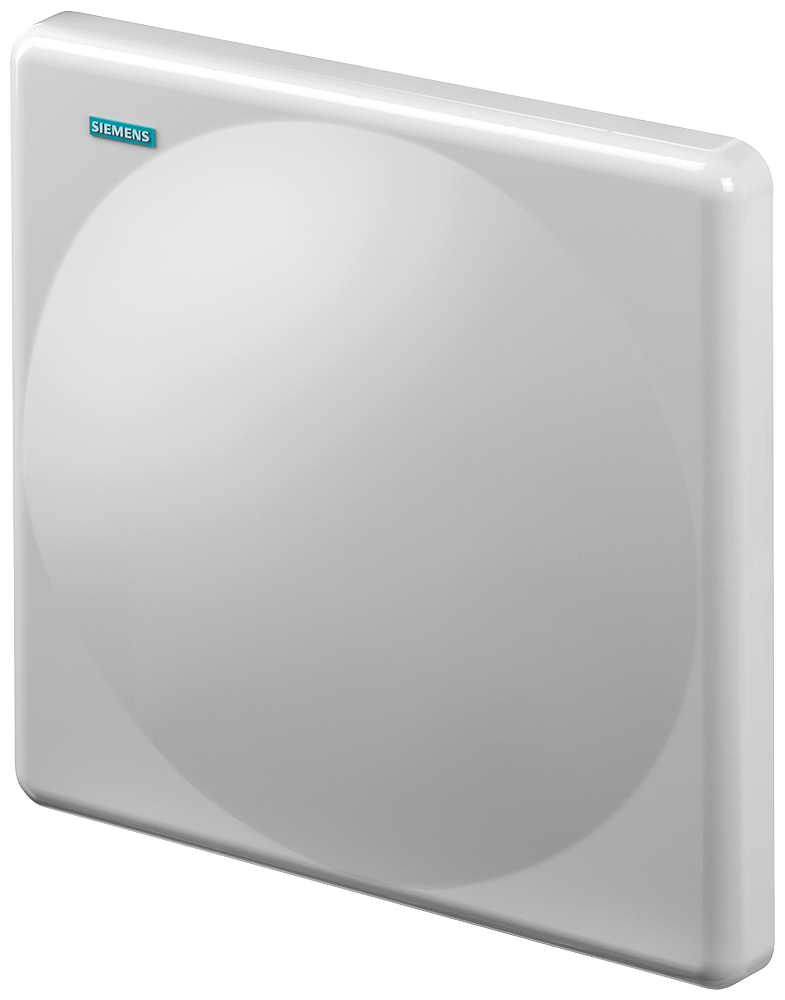

      Antenna ANT 793-8DJ, IWLAN, directivity, 5 GHz, 18 dBi, N-female, IP67

      SKU: 6GK5793-8DJ00-0AA0

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The ANT793-8DJ IWLAN antenna. Vertically-horizontally polarized with strong directional effect, including 2x N-female socket; 18 DBI; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and national approvals; mounting on wall or mast; compact instructions in hard copy German/English; scope of delivery: 1x ANT793-8DJ, 1x mounting aid for alignment.
      6GK5793-8DJ00-0AA0
      Alternative image 1
      Specifications: Type of wireless network / is supported: WLAN. Operating frequency for WLAN in 2.4 GHz frequency band: 5.15 ... 5.875 GHz. Standing wave ratio (VSWR) / maximum: 1.7. Radiating angle of the antenna: In the 5 GHz frequency band / horizontal: 17°. In the 5 GHz frequency band / vertical: 17°. Number of electrical connections / of the antenna: 2. Type of electrical connection / of the antenna: N-Connector. Design of plug-in connection: female. Material of outer shell: Polycarbonate / aluminium. Ambient temperature: During operation: -45 ... +70 °C. During storage: -45 ... +70 °C. During transport: -45 ... +70 °C. Protection class IP: IP67. Width: 190 mm. Height: 190 mm. Depth: 30.5 mm. Fastening method: Mast mounting. Wall mounting.
