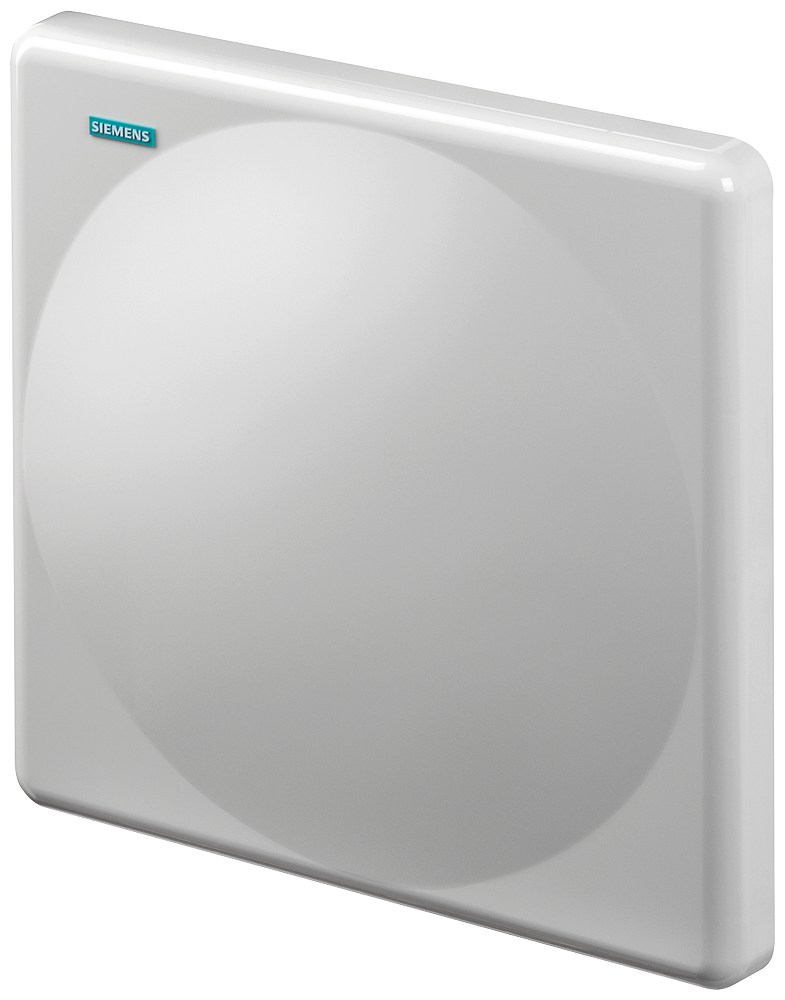

Antenna ANT 793-8DK, IWLAN, directivity, 5 GHz, 23 dBi, N-female, IP67
SKU: 6GK5793-8DK00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT793-8DK IWLAN antenna, vertically-horizontally polarized with strong directional impact, including 2x N-female socket; 23 DBI; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and national approvals.
Mounting on a wall or mast; concise instructions in hard copy German and English.
The supply includes one ANT793-8DK and one mounting aid for alignment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
Operating frequency for WLAN in 5 GHz frequency band 1: 5.15 ... 5.875 GHz.
Standing wave ratio (VSWR) / maximum: 1.7.
Radiating angle of the antenna:
In the 5 GHz frequency band / horizontal: 9°.
In the 5 GHz frequency band / vertical: 9°.
Number of electrical connections / of the antenna: 2.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Material of outer shell: Polycarbonate.
Ambient temperature:
During operation: -45 ... +70 °C.
During storage: -45 ... +70 °C.
During transport: -45 ... +70 °C.
Protection class IP: IP67.
Width: 371 mm.
Height: 371 mm.
Depth: 40 mm.
Fastening method:
Mast mounting.
Wall mounting.
