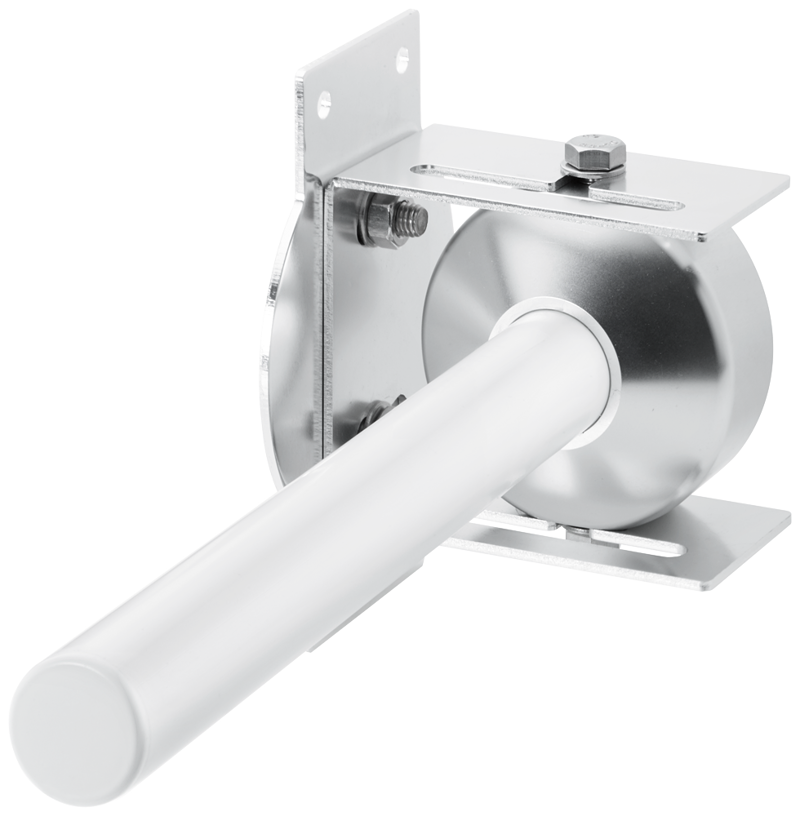

Antenna ANT793-8DL, IWLAN, railway application, directivity, 5 GHz, 14 dBi, N...
SKU: 6GK5793-8DL00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT793-8DL IWLAN antenna vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 14 DBI; IP66 (-45-+70 °C), 5 GHz; ideal for railway applications; Wi-Fi compliance and national approvals.
Mounting on a wall or mast; concise instructions in hard copy German and English; The supply includes one ANT793-8DL and one mounting aid for alignment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
Operating frequency for WLAN in 5 GHz frequency band 1: 4.9 ... 5.9 GHz.
Standing wave ratio (VSWR) / maximum: 2.5.
Radiating angle of the antenna:
In the 5 GHz frequency band / horizontal: 30°.
In the 5 GHz frequency band / vertical: 30°.
Number of electrical connections / of the antenna: 2.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Material of outer shell: ASA.
Ambient temperature:
During operation: -45 ... +70 °C.
During storage: -45 ... +70 °C.
During transport: -45 ... +70 °C.
Protection class IP: IP66.
Width: 100 mm.
Height: 283 mm; incl. bracket.
Depth: 40 mm.
Fastening method:
Mast mounting.
Wall mounting.
