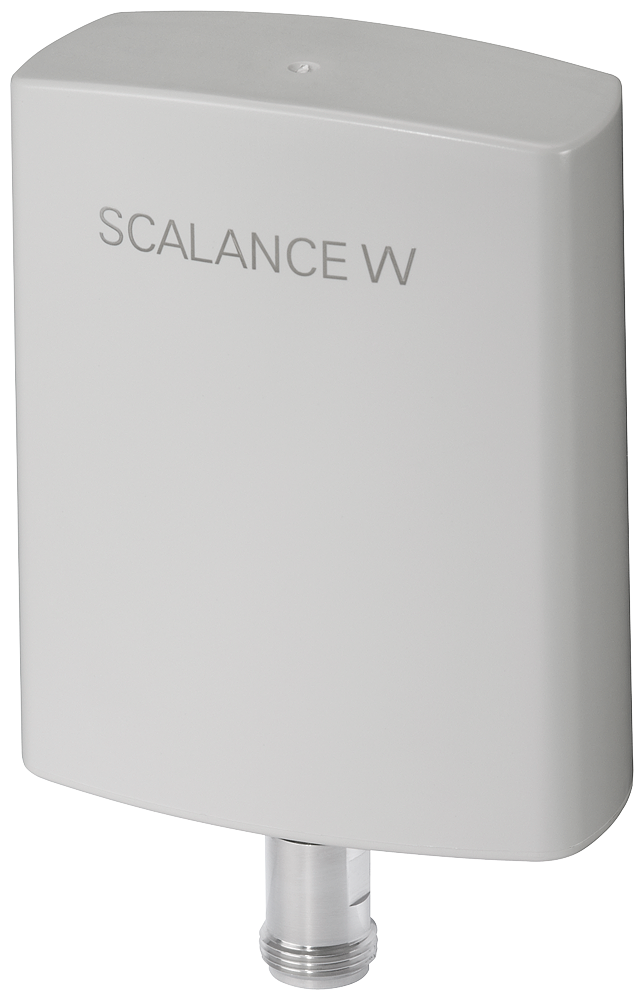

Antenna ANT 793-8DP, IWLAN, directivity, 4.9-5.35 GHz, 13/13.5 dBi, N-female
SKU: 6GK5793-8DP00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT793-8DP IWLAN antenna with strong directional impact, including N-female plug: 13/13.5 DBI; IP66/67; (-40-+80 °C); 4.9-5.35 GHz; Wi-Fi compliance and national approvals.
Mounting on a wall or mast; compact instructions in hard copy German/English; package includes one ANT793-8DP and one mounting assist for alignment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
Operating frequency for WLAN in 5 GHz frequency band 1: 4.9 ... 5.35 GHz.
Standing wave ratio (VSWR) / maximum: 1.5.
Radiating angle of the antenna:
In the 5 GHz frequency band / horizontal: 40°.
In the 5 GHz frequency band / vertical: 35°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Material of outer shell: Lexan EXL 9330.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Protection class IP: IP66/67.
Width: 80 mm.
Height: 101 mm.
Depth: 35 mm.
Fastening method:
Mast mounting.
Wall mounting.
