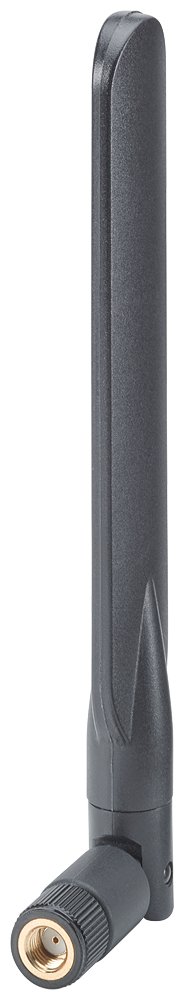

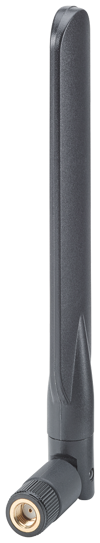

Antenna ANT 795-4MA, IWLAN, omnidirectional, 2.4/5 GHz, 3/5 dBi, RSMA, IP30
SKU: 6GK5795-4MA00-0AA3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT795-4MA IWLAN antenna with omnidirectional characteristics, radially rotating, with additional joint, including an RSMA connector: 3/5 DBI, IP30 (-20 to +60 °C), 2.4/5 GHz; Wi-Fi compliance and national approvals.
Direct mounting on SCALANCE W with an RSMA connection method.
The scope of supply includes one ANT795-4MA and concise instructions in hard copy German/English.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
operating frequency:
for WLAN in 2.4 GHz frequency band: 2.4 ... 2.4835 GHz.
for WLAN in 5 GHz frequency band 1: 5.15 ... 5.35 GHz.
for WLAN in 5 GHz frequency band 2: 5.725 ... 5.85 GHz.
Standing wave ratio (VSWR) / maximum: 2.
Radiating angle of the antenna:
In the 2.4 GHz frequency band / horizontal: 360°.
In the 5 GHz frequency band / vertical: 360°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: RSMA Connector.
Design of plug-in connection: male, variable 0-90°.
Material of outer shell: Polycarbonate.
Ambient temperature:
During operation: -20 ... +65 °C.
During storage: -20 ... +65 °C.
During transport: -20 ... +65 °C.
Protection class IP: IP30.
Width: 35 mm.
Height: 160 mm.
Depth: 13 mm.
Fastening method: directly on the device.
