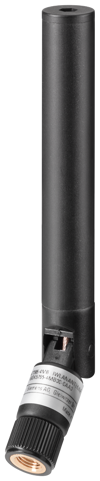

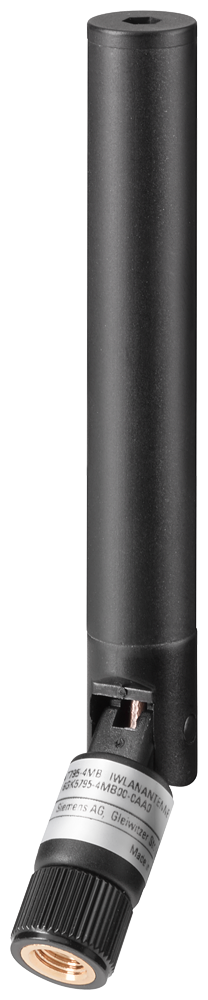

Antenna ANT795-4MB, IWLAN, omnidirectional, 2.4/5 GHz, 2/3 dBi, RSMA, IP65
SKU: 6GK5795-4MB00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT795-4MB IWLAN antenna with omnidirectional characteristics, radially rotating, with additional joint, including an RSMA connector: 2/3 DBI, IP65 (-20-+60 °C), 2.4/5 GHz; Wi-Fi compliance and national approvals must be followed; direct installation on SCALANCE W with RSMA connection mechanism.
The scope of delivery includes 1xANT795-4MB and compact instructions in hard copy German/English.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
Operating frequency:
for WLAN in 2.4 GHz frequency band: 2.4 ... 2.5 GHz.
for WLAN in 5 GHz frequency band 1: 5.15 ... 5.85 GHz.
Standing wave ratio (VSWR) / maximum: 2.
Radiating angle of the antenna:
In the 2.4 GHz frequency band / horizontal: 360°.
In the 5 GHz frequency band / vertical: 360°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: RSMA Connector.
Design of plug-in connection: male, variable 0-90°.
Material of outer shell: Polycarbonate.
Ambient temperature:
During operation: -20 ... +65 °C.
During storage: -30 ... +70 °C.
Protection class IP: IP65.
Height: 114 mm.
Diameter: 12.9 mm.
Fastening method: directly on the device.
