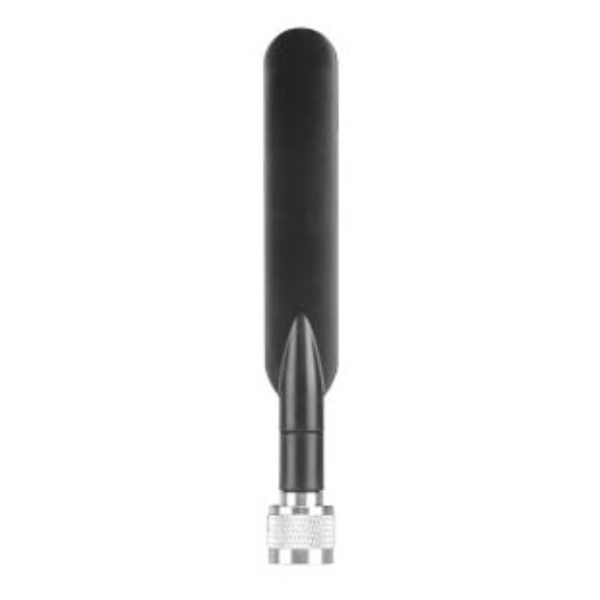

Antenna ANT 795-4MC, IWLAN, omnidirectional, 2.4/5 GHz, 3/5 dBi, N-male, IP65
SKU: 6GK5795-4MC00-0AA3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT795-4MC IWLAN antenna with omnidirectional characteristics, including a straight N-Connect male plug; 3/5 dBi IP65 (-20-+60 °C); 2.4/5GHz Wi-Fi compliance and adherence to national approvals; direct mounting on SCALANCE W with N-Connect connection system; The delivery includes one ANT795-4MC and hardcopy instructions in German and English.
Radio frequencies:
Type of wireless network / is supported: WLAN.
Operating frequency:
For WLAN in 2.4 GHz frequency band: 2.4 ... 2.4835 GHz.
For WLAN in 5 GHz frequency band: 1: 5.15 ... 5.35 GHz.
For WLAN in 5 GHz frequency band 2: 5.725 ... 5.85 GHz.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Antenna gain compared to spherical radiator.
Of the WLAN antenna / in the 2.4 GHz frequency band: 3 dB.
Of the WLAN antenna / in the 5 GHz frequency band: 5 dB.
Impedance: 50 Ω.
Polarization: Linear Vertical.
Radiation characteristic: omnidirectional.
Standing wave ratio (VSWR) / maximum: 2.
Radiating angle of the antenna:
In the 2.4 GHz frequency band / horizontal: 360°.
In the 5 GHz frequency band / horizontal: 360°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: male, straight.
Angle of inclination / downward / maximum: 0°.
Mechanical data:
Material.
Of outer shell: Polycarbonate.
Ambient conditions:
Ambient temperature.
During operation: -20 ... +65 °C.
During storage: -20 ... +65 °C.
During transport: -20 ... +65 °C.
Protection class IP: IP65.
Design, dimensions and weights:
Width: 35 mm.
Height: 160 mm.
Depth: 13 mm.
Net weight: 26 g.
Fastening method:
Mast mounting: No.
Wall mounting: No.
Roof mounting: No.
Directly on the device: Yes.
Product features, product functions, product components / general:
Product feature / silicon-free: Yes.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
Product conformity: UL 94-HB.
Reference code / according to IEC 81346-2:2019: TFB.
