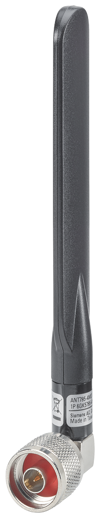

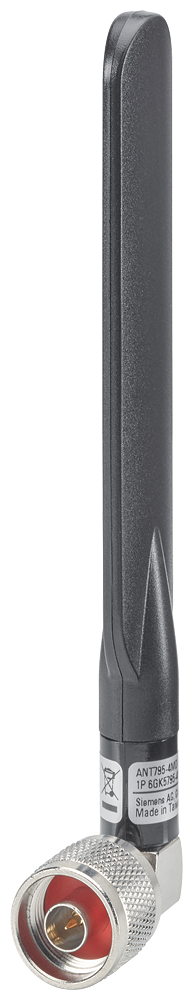

Antenna ANT 795-4MD, IWLAN, omnidirectional, 2.4/5 GHz, 3/5 dBi, N-female, IP65
SKU: 6GK5795-4MD00-0AA3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT795-4MD IWLAN antenna with omnidirectional characteristics; includes N Connect male plug with fixed 90° angle; 3/5 DBI; IP65 (-20-+60 °C), 2.4/5GHz; Wi Fi compliance and adherence to national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions in hard copy German/English.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
Operating frequency:
for WLAN in 2.4 GHz frequency band: 2.4 ... 2.4835 GHz.
for WLAN in 5 GHz frequency band 1: 5.15 ... 5.35 GHz.
for WLAN in 5 GHz frequency band 2: 5.725 ... 5.85 GHz.
Standing wave ratio (VSWR) / maximum: 2.
Radiating angle of the antenna:
In the 2.4 GHz frequency band / horizontal: 360°.
In the 5 GHz frequency band / vertical: 360°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: male, 90° angle.
Material of outer shell: Polycarbonate.
Ambient temperature:
During operation: -20 ... +65 °C.
During storage: -20 ... +65 °C.
During transport: -20 ... +65 °C.
Protection class IP: IP65.
Width: 35 mm.
Height: 160 mm.
Depth: 13 mm.
Fastening method: directly on the device.
