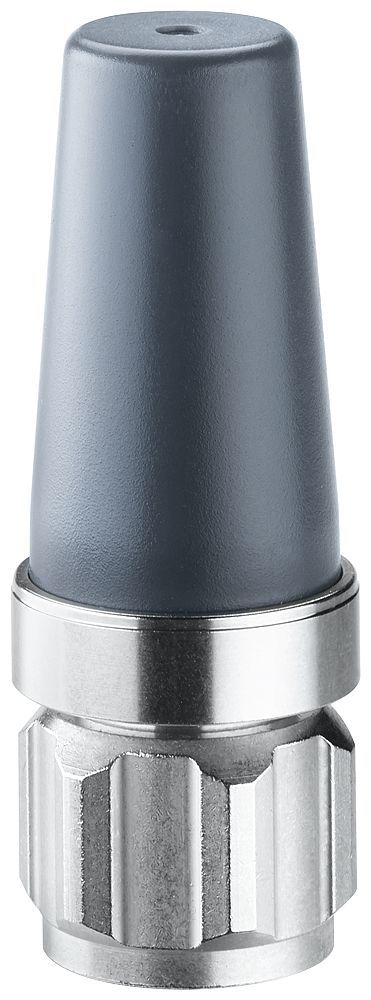

Antenna ANT 795-4MX, IWLAN, omnid., 2.4/5 GHz, 2/2.5 dBi, N-male, IP68/69K
SKU: 6GK5795-4MX00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT795-4MX omnidirectional antenna with railway approval; includes N-Connect male plug straight: 2/2.5 DBI; IP68/69K (-40-+85 °C), WLAN 2.4/5 GHz, and private 5G networks; Wi-Fi compliance and national approvals; direct mounting on SCALANCE devices with N-Connect connection system; Scope of Delivery: 1x ANT795-4MX, concise instructions in hard copy German/English.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: 5G private networks, WLAN.
Operating frequency:
For WLAN in 2.4 GHz frequency band: 2.4 ... 2.7 GHz.
For WLAN in 5 GHz frequency band 1: 4.9 ... 5.92 GHz.
Standing wave ratio (VSWR) / maximum: 2.
Radiating angle of the antenna:
In the 2.4 GHz frequency band / horizontal: 360°.
In the 5 GHz frequency band / horizontal: 360°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: male, straight.
Material of outer shell: ASA.
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Protection class IP: IP68/IP69K.
Height: 55 mm.
Diameter: 22 mm.
Fastening method: directly on the device.
