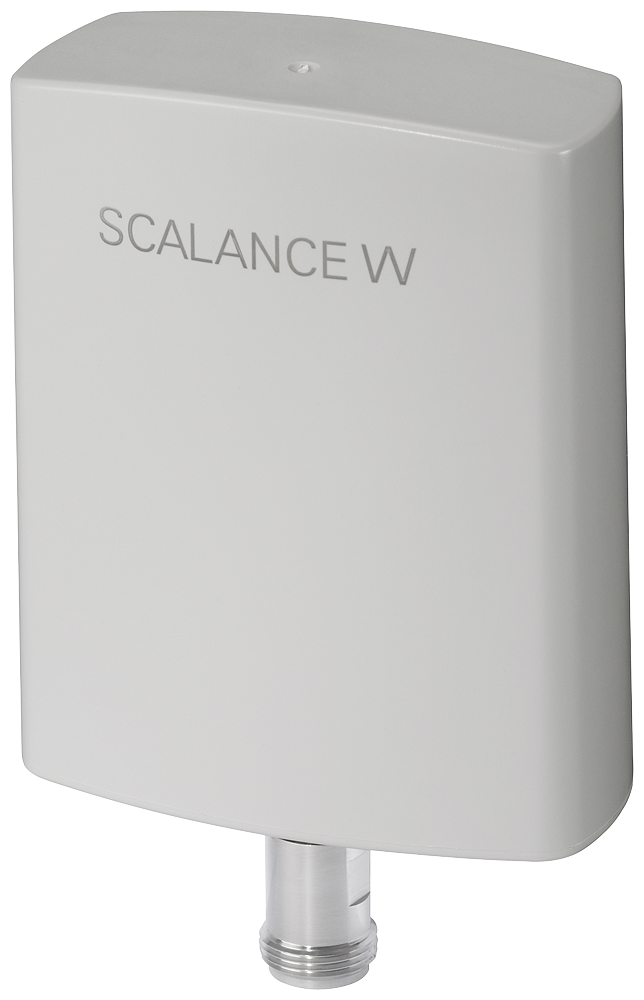

Antenna ANT 795-6DC, IWLAN, sector ant., 2.4/5 GHz, 9/9 dBi, N-female, IP66/67
SKU: 6GK5795-6DC00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT795-6DC IWLAN antenna with mild directional effect; includes N-female plug: 9 DBI; IP66/67 (-40-+80 °C), 2.4/5GHz; Wi-Fi compliance and national approvals; mounting on wall or tower; compact instructions in hard copy German/English.
The supply includes one ANT795-6DC and one mounting aid for alignment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: 5G private networks, WLAN.
Operating frequency:
For WLAN in 2.4 GHz frequency band: 2.4 ... 2.5 GHz.
For WLAN in 5 GHz frequency band 1: 5.15 ... 5.875 GHz.
Standing wave ratio (VSWR) / maximum: 2.
Radiating angle of the antenna:
In the 2.4 GHz frequency band / horizontal: 75°.
In the 2.4 GHz frequency band / vertical: 55°.
In the 5 GHz frequency band / horizontal: 55°.
In the 5 GHz frequency band / vertical: 55°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Material of outer shell: Lexan EXL 9330.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Protection class IP: IP66/67.
Width: 80 mm.
Height: 101 mm.
Depth: 35 mm.
Fastening method:
Mast mounting.
Wall mounting.
