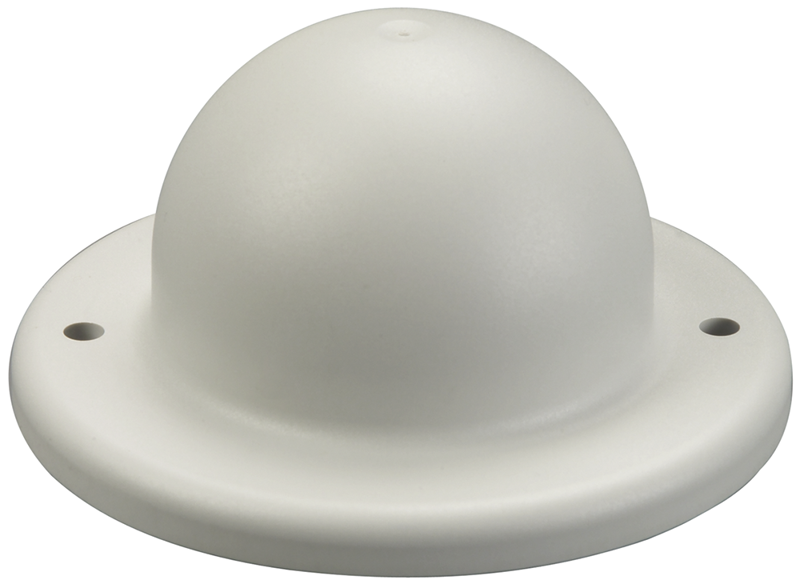

Antenna ANT 795-6MN, IWLAN, omnidirectional, 2.4/5 GHz, 6/8 dBi, N-female, IP65
SKU: 6GK5795-6MN10-0AA6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT795-6MN antenna with omnidirectional characteristics; includes N-Connect female plug: 6/8 DBI; IP65 (-40-+70 °C), WLAN 2.4/5 GHz, and private 5G networks; Wi-Fi compliance and national approvals; mounting on roofs and vehicles; concise instructions in hard copy German/English.
Scope of delivery: 1x ANT795 6MN; mounting assistance 6GK5795-6MN01-0AA6 is offered.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: 5G private networks, WLAN.
Operating frequency:
For WLAN in 2.4 GHz frequency band: 2.4 ... 2.7 GHz.
For WLAN in 5 GHz frequency band 1: 4.9 ... 5.92 GHz.
Standing wave ratio (VSWR) / maximum: 2.
Radiating angle of the antenna:
Horizontal: 360°.
In the 5 GHz frequency band / horizontal: 150°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Material of outer shell: Polycarbonate.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Protection class IP: IP65; with correct installation.
Width: 86 mm.
Height: 43 mm.
Depth: 86 mm.
Fastening method:
Flat roof mounting.
Roof mounting.
Wall mounting.
