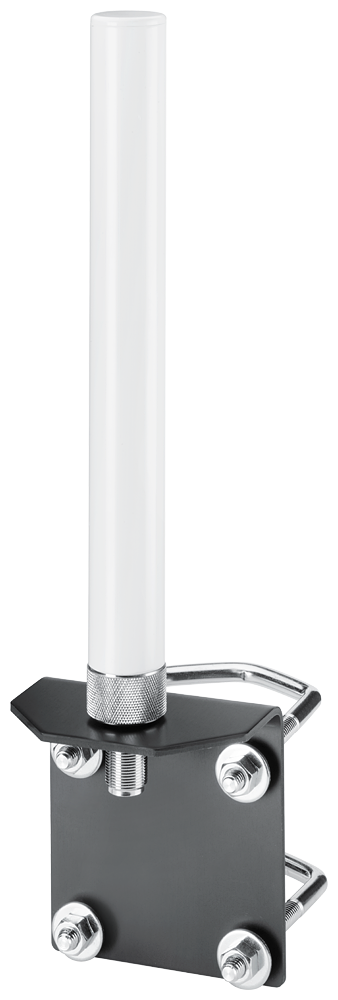

Antenna ANT795-6MP, IWLAN, omnidirectional, 2.4/5GHz, 5/7 dBi, N-female, IP65/67
SKU: 6GK5795-6MP00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
ANT795-6MP IWLAN antenna with omnidirectional characteristic; includes N-Female plug: 5/7 DBI; IP65/67 (-40-+80 °C); 2.4/5 GHz Wi-Fi compliance and national approvals; mounting on wall or pole; concise instructions in German/English.
The scope for delivery includes one ANT795-6MP and one mounting assist.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of wireless network / is supported: WLAN.
Operating frequency:
For WLAN in 2.4 GHz frequency band: 2.4 ... 2.5 GHz.
For WLAN in 5 GHz frequency band 1: 4.94 ... 5.925 GHz.
Standing wave ratio (VSWR) / maximum: 2.
Radiating angle of the antenna:
In the 2.4 GHz frequency band / horizontal: 360°.
In the 2.4 GHz frequency band / vertical: 25°.
In the 5 GHz frequency band / horizontal: 360°.
In the 5 GHz frequency band / vertical: 15°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: female.
Material of outer shell: UV-resistant white plastic.
Colour: white.
Ambient temperature:
During operation: -40 ... +80 °C.
During storage: -40 ... +80 °C.
During transport: -40 ... +80 °C.
Protection class IP: IP65/67.
Width: 97 mm.
Height: 367 mm; incl. bracket.
Depth: 64 mm.
Diameter: 28.6 mm.
Fastening method:
Mast mounting.
Wall mounting.
