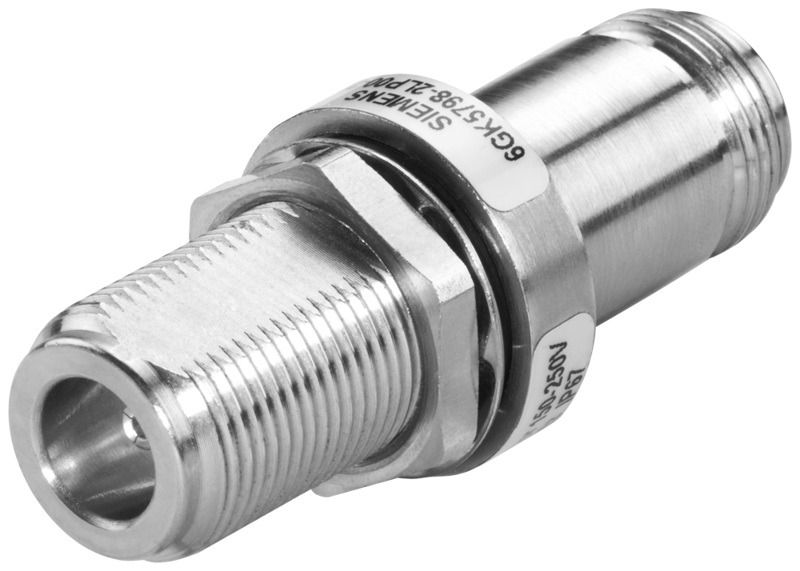

Lightning protection LP 798-1N for SCALANCE W and M antennas
SKU: 6GK5798-2LP00-2AA6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is LP798-1N lightning protector.
This lightning protector, model number LP798-1N, has a N/N Female/female connection, IP66/68 (-40...+85 °C), 0...6 GHz, gas discharge technology for SCALANCE W and M antennas, and short instructions in hard copy German/English.
Suitability for operation: Gas discharge arrester; preferably used in industrial remote communication; IWLAN possible.
Interfaces:
Number of electrical connections: 2.
Type of electrical connection: N-Connector.
Design of plug-in connection: female / female.
Electrical data:
Transmission frequency: 0 ... 6000 MHz.
Insertion loss: < 0.16 dB.
Impedance: 50 Ω.
Buy currently uses Select Automation shop pricing and checkout.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Suitability for use:
For interior use: Yes.
For outside use: Yes.
Protection class IP: IP66 / IP68 (2,5 bar/1h).
Design, dimensions and weights:
Width: 54.8 mm.
Diameter: 22.8 mm.
Net weight: 50 g.
Product features, product functions, product components / general:
Product feature / silicon-free: Yes.
Standards, specifications, approvals:
Reference code:
According to IEC 81346-2:2019: FAD.
