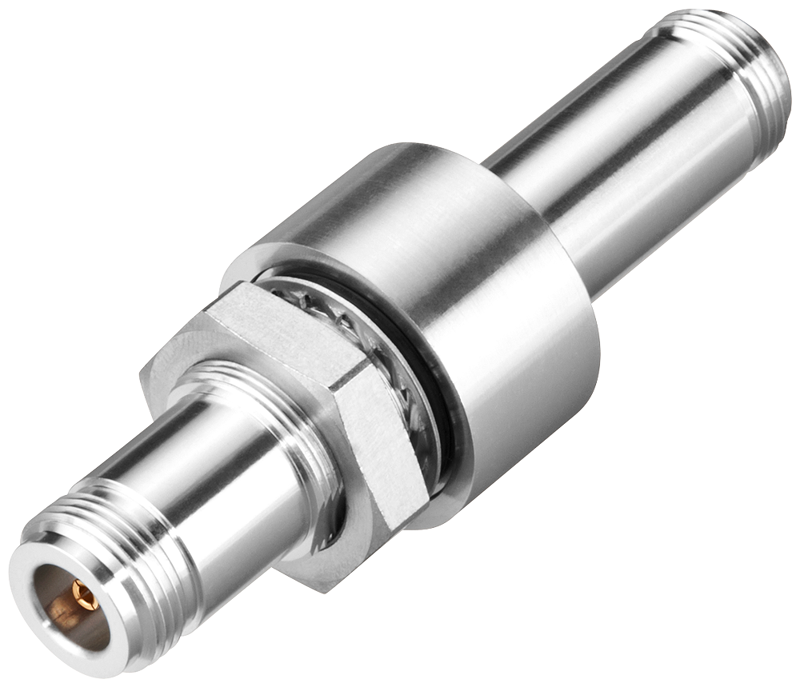

Lightning protection LP 798-2N for SCALANCE W antennas
SKU: 6GK5798-2LP10-2AA6
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is LP798-2N lightning protector.
Lightning protection element LP798-2N, N/N Female/Female connection, IP65 (-40...+85 °C), 2... 6 GHz, using Quarter-Wave technology for SCALANCE W antennas; comes with concise instructions in hard copy Italian/German.
Suitability for operation: Quarter-wave short-circuited type; preferably used in IWLAN.
Interfaces:
Number of electrical connections: 2.
Type of electrical connection: N-Connector.
Design of plug-in connection: female / female.
Electrical data:
Transmission frequency: 2000 ... 6000 MHz.
Insertion loss: < 0.2 dB.
Impedance: 50 Ω.
Buy currently uses Select Automation shop pricing and checkout.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +85 °C.
During storage: -40 ... +85 °C.
During transport: -40 ... +85 °C.
Suitability for use:
For interior use: Yes.
For outside use: Yes.
Protection class IP: IP68.
Design, dimensions and weights:
Width: 89.6 mm.
Diameter: 29 mm.
Net weight: 80 g.
Product features, product functions, product components / general:
Product feature / silicon-free: Yes.
Standards, specifications, approvals:
Reference code:
According to IEC 81346-2:2019: FAD.
