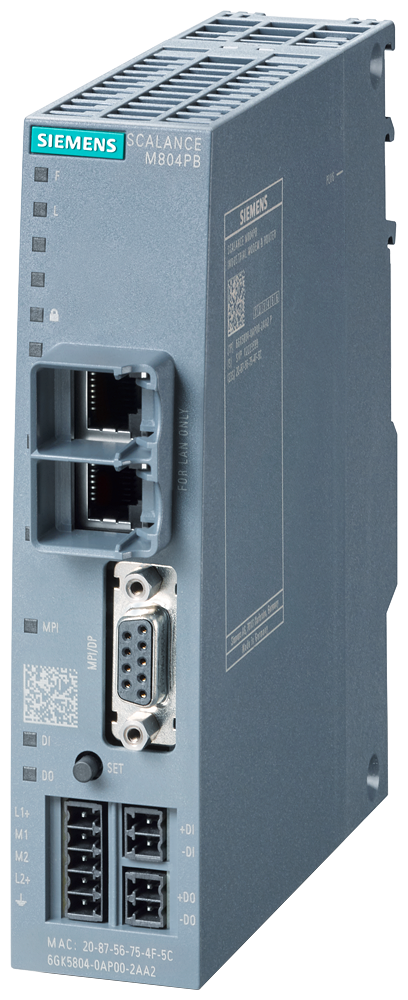

SCALANCE M804PB, router (Ethernet <lt/>-<gt/> PROFIBUS/MPI)
SKU: 6GK5804-0AP00-2AA2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is M804PB.
SCALANCE M804PB Router enables safe remote connection of PROFIBUS / MPI programmable controllers to Ethernet networks via VPN and firewall.
Additional features include address conversion (NAT/NAPT), connection to SINEMA RC, and a two-port switch with one digital input and one digital output.
Transfer rate:
transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s.
Interfaces:
Number of electrical connections:
For internal network: 2.
For external network: 1.
Number of interfaces / according to RS 485: 1.
Number of electrical connections:
For power supply: 2.
Type of electrical connection:
For internal network: RJ45 port (10/100 Mbit/s, TP, auto crossover), SUB-D.
For external network: RJ45 port (10/100 Mbit/s, TP, auto crossover).
For power supply: Terminal strip.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Supply voltage / rated value: 10.8 ... 28.8.
Consumed current:
At DC / at 24 V / typical: 0.25 A.
Power loss [W]:
Maximum: 8 W.
Supply voltage / 1 / rated value: 24 V.
Type of voltage / 1 / of the supply voltage: DC.
Ambient conditions:
Ambient temperature:
During operation: -20 ... +60 °C.
During storage: -40 ... +85 °C.
Relative humidity / at 25 °C / during operation / maximum: 95 %.
Protection class IP: IP20.
Design, dimensions and weights:
Design: compact.
Depth: 127 mm.
Height: 147 mm.
Width: 35 mm.
Net weight: 350 g.
Fastening method:
35 mm top hat DIN rail mounting: Yes.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: Yes.
Wall mounting: Yes.
Product features, product functions, product components / general:
Product function:
DynDNS client: Yes.
No-ip.com client: Yes.
