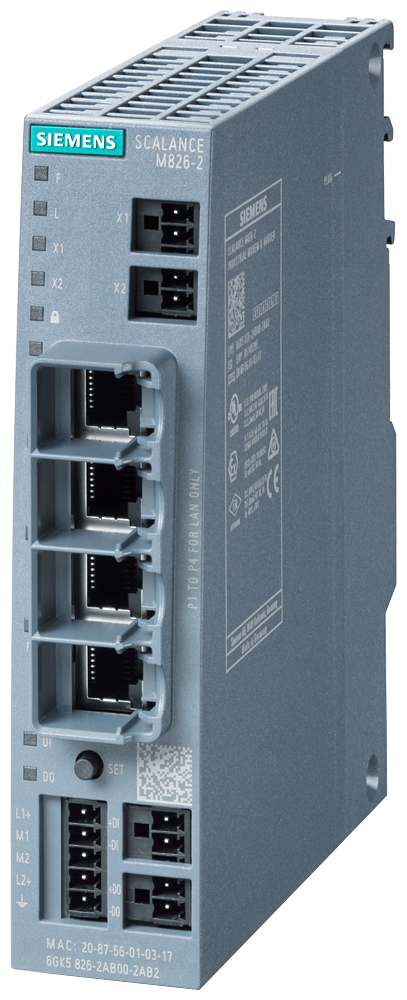

SCALANCE M826-2, SHDSL router (Ethernet<lt/>-<gt/>2/4-wire cable), VPN, fire
SKU: 6GK5826-2AB00-2AB2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product type designation: M826-2 SHDSL.
SCALANCE M826-2 SHDSL router; for IP connection via two and four-wire cables from Ethernet-based programmable controllers; SHDSL topology includes point-to-point, bonding, and line bridge modes; routing mode with VPN, firewall, and NAT; a 4-port switch; and one digital input and output.
Transfer rate:
Transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s.
Transfer rate:
For SHSDL transmission / maximum: 15.3 Mbit/s.
Interfaces:
Number of electrical connections:
For internal network: 4.
For external network: 2.
Number of electrical connections:
For power supply: 2.
Type of electrical connection:
For internal network: RJ45 port (10/100 Mbit/s, TP, autocrossover).
For external network: Terminal strip.
For power supply: Terminal strip.
WAN connection:
Type of WAN connection / is supported / SHSDL: Yes.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage, current consumption, power loss:
Supply voltage / rated value: 10.8 ... 28.8.
Consumed current:
At DC / at 24 V / typical: 0.29 A.
Supply voltage / 1 / rated value: 24 V.
Type of voltage / 1 / of the supply voltage: DC.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +70 °C.
During storage: -40 ... +80 °C.
Relative humidity / at 25 °C / during operation / maximum: 95 %.
Protection class IP: IP20.
Design, dimensions and weights:
Design: compact.
Depth: 127 mm.
Height: 147 mm.
Width: 35 mm.
Net weight: 393 g.
Fastening method:
35 mm top hat DIN rail mounting: Yes.
S7-300 rail mounting: Yes.
S7-1500 rail mounting: Yes.
Wall mounting: Yes.
Product features, product functions, product components / general:
Product function:
DynDNS client: Yes.
No-ip.com client: Yes.
