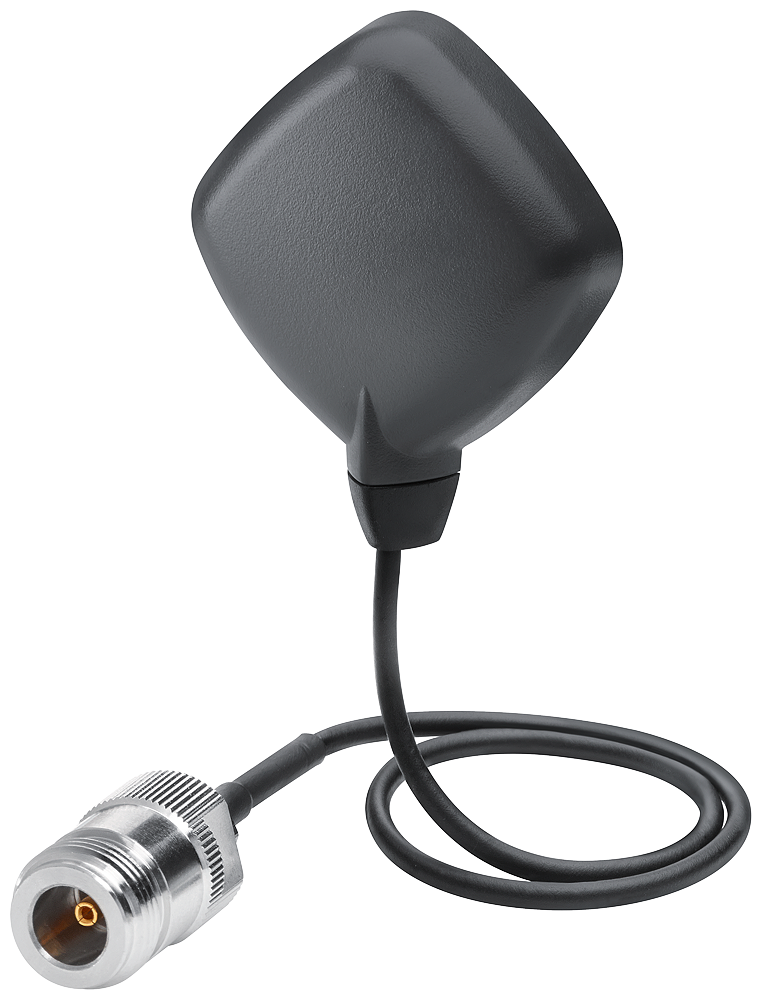

Antenna ANT 895-6ML, GPS, integr. amplifier, 3 dBi, N-female, IP67, 0.3 m cable
SKU: 6GK5895-6ML00-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is Antenna ANT895-6ML.
The ANT895-6ML GPS antenna with integrated signal amplifier includes 0.3 m connecting cable and N-Connect female connection; 3 dBi, IP67 (-40...+85 °C).
Mounting using magnet or screw Observe national approvals; compact instructions in hard copy German/English; shipping includes 1x ANT 895-6ML.
Suitability for use: GPS.
Radio frequencies:
Type of satellite navigation system / is supported / GPS, GLONASS and Galileo: Yes.
Operating frequency: 1575.42 MHz.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Antenna gain compared to spherical radiator:
With circular radiation: 3 dB; at 90°.
Design of the signal amplifier / integrated: two-stage, low noise.
Supply voltage / from antenna cable: 2.7 ... 5 V.
Type of voltage / of the supply voltage: DC.
Consumed current / maximum: 2 mA; at 5 V.
Amplification: 20 dB.
Design of the intermediate frequency filter: dual high rejection SAW filter.
Polarization: Right hand circular.
Radiation characteristic: GPS.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: N-Connector.
Design of plug-in connection: Female.
Mechanical data:
Colour: Black.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +85 °C.
Protection class IP: IP67; with correct installation.
Design of the overvoltage protection: Integrated protection up to 15 KV.
Design, dimensions and weights:
Width: 52.1 mm.
Height: 59.2 mm.
Depth: 13.6 mm.
Net weight: 130 g.
Fastening method: Magnet or screw mounting.
Fastening method:
Directly on the device: No.
Wire length / of antenna cable: 0.3 m.
Product features, product functions, product components / general:
Product feature / silicon-free: Yes.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
wireless approval: Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen.
reference code / according to IEC 81346-2:2019: TFB.
