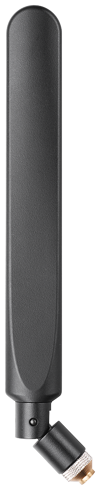

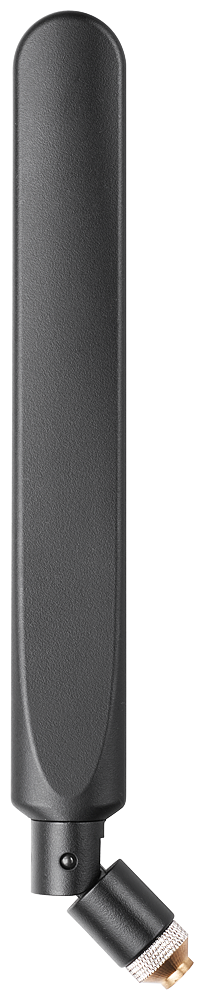

Antenna ANT 896-4MA, mobile communications, GSM/UMTS/LTE, 3 dBi, SMA-male, IP54
SKU: 6GK5896-4MA00-0AA3
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The product type designation is Antenna ANT896-4MA.
The ANT896-4MA mobile wireless antenna supports GSM (2G), UMTS (3G), and LTE (4G) networks.
It is omnidirectional, radially rotating, and includes an extra joint.
Gain of the antenna: 2 dBi; includes a SMA socket; IP54; -40 to +85 °C; observe national approvals; intended for direct installation using a SMA connection method; The scope of delivery includes one ANT 896-4MA and concise instructions in hard copy German/English.
Radio frequencies:
type of wireless network / is supported: LTE, UMTS, GSM.
Operating frequency: 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1575.42 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2200 MHz, 2600 MHz.
Buy currently uses Select Automation shop pricing and checkout.
Electrical data:
Antenna gain compared to spherical radiator:
with linear radiation: 2 dB.
impedance: 50 Ω.
Polarization: Linear Vertical.
Radiation characteristic: omnidirectional.
standing wave ratio (VSWR) / maximum: 2.5.
radiating angle of the antenna:
horizontal: 360°.
Number of electrical connections / of the antenna: 1.
Type of electrical connection / of the antenna: SMA Connector.
Design of plug-in connection: Male, variable 0-90°.
Ambient conditions:
Ambient temperature:
During operation: -40 ... +85 °C.
Protection class IP: IP54.
Design, dimensions and weights:
Width: 24 mm.
Height: 210 mm.
Net weight: 44 g.
Fastening method:
flat roof mounting: No.
Directly on the device: Yes.
Product features, product functions, product components / general:
Product feature / silicon-free: Yes.
Standards, specifications, approvals:
Certificate of suitability:
RoHS conformity: Yes.
wireless approval: Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen.
reference code / according to IEC 81346-2:2019: TFB.
